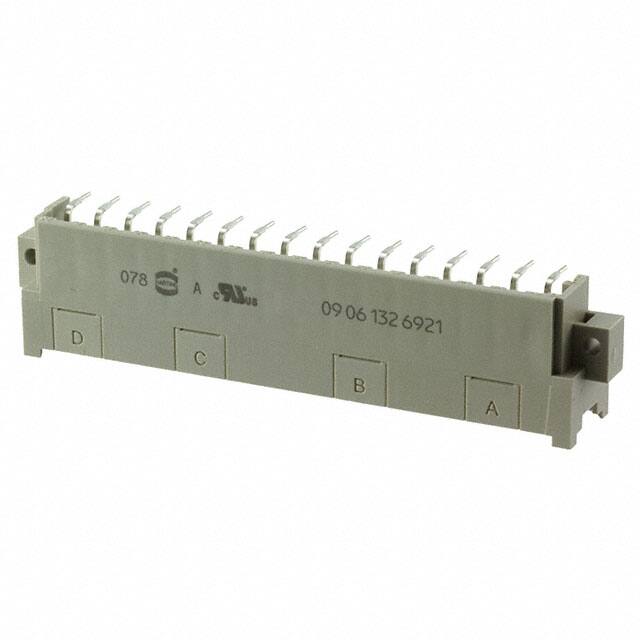

09061326921

Teknik Özellikler

Withdrawl Forcemin

1.5568 N

Mil Conformance

NO

Polarization Key

POLARIZED HOUSING

Level Class

2

Çalışma Sıcaklığı

-55°C~125°C

Insertion Forcemax

1.5568 N

Akım Değeri

6A

Gender

Male

JESD-609 Kodu

e4

Number Of Pcb Rows

3

Filter Feature

NO

Flammability Rating

UL94 V-0

Insulation Resistance

1000000000000Ohm

Fabrika Tedarik Süresi

7 Weeks

Material Insulation

Thermoplastic, Glass Filled

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

VDE,CSA

Seri

DIN 41612

Style

F

Terminal

Solder

Ul Flammability Code

94V-0

Montaj Tipi

Through Hole, Right Angle

Name Of Rows Loaded

Z,B

Orientation

Right Angle

Empty Shell

NO

Dielectric Withstanding Voltage

1550VAC V

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Montaj

Through Hole

Connector Type

Header, Male Pins

Sıra Sayısı

3

Iec Conformance

NO

Option

GENERAL PURPOSE

Kurşunsuz Kodu

yes

Number Of Positions Loaded

32

Body Depth

0.866 inch

Material Flammability Rating

UL94 V-0

Total Number Of Contacts

32

Rated Current Signal

6A

Mixed Contacts

NO
