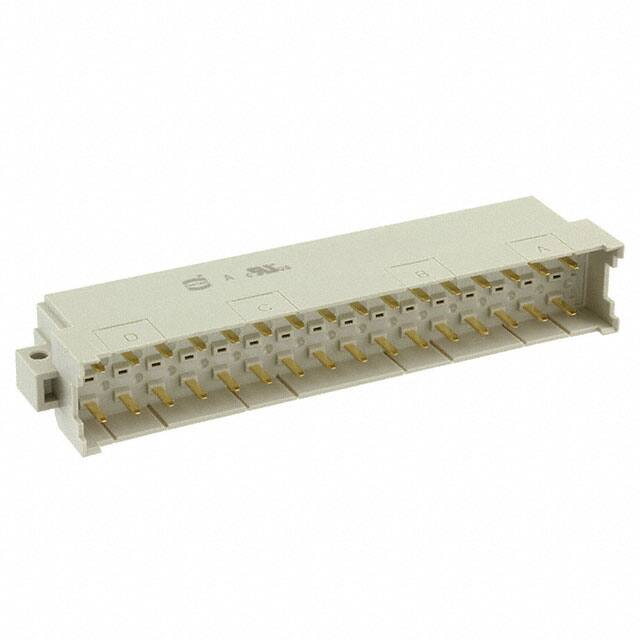

09061322931

Teknik Özellikler

Durability

500 Cycles

RoHS Durumu

ROHS3 Compliant

Pozisyon Sayısı

48 (Power)

Ambalaj

Bulk

Length Tail

3mm

Pitch

0.100 2.54mm

Din Conformance

YES

Reliability

COMMERCIAL

Contact Plating

Gold

Contact Finish Thickness

Flash

Contact Finish

Gold or Gold-Palladium

Uzunluk

93.9mm

Total Number Of Contacts

32

Mixed Contacts

NO

Rated Current Signal

6A

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Kurşunsuz Kodu

yes

Iec Conformance

NO

Number Of Positions Loaded

32

Montaj

Through Hole

Sıra Sayısı

3

Connector Type

Header, Male Pins

Empty Shell

NO

Pcb Contact Pattern

RECTANGULAR

Max Current Rating

6A

Parça Durumu

Active

Housing Material

Thermoplastic

Name Of Rows Loaded

Z,D

Orientation

Right Angle

Pcb Contact Row Spacing

2.54 mm

Montaj Tipi

Through Hole, Right Angle

Terminal

Solder

Seri

DIN 41612

Style

F

Ul Flammability Code

94V-0

Reference Standard

VDE,CSA

Material Insulation

Polybutylene Terephthalate (PBT), Glass Filled

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)
