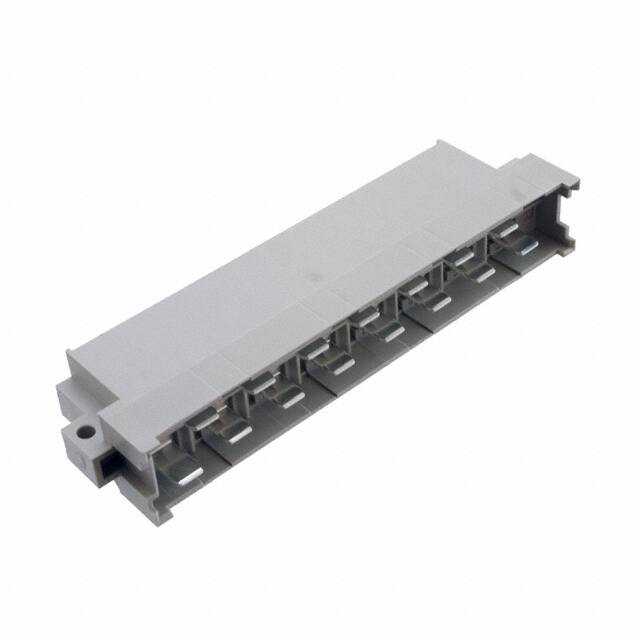

09061152932

Teknik Özellikler

Din Conformance

YES

JESD-609 Kodu

e3

ECCN Kodu

EAR99

Material

Polyester

Ul Flammability Code

94V-0

Operating Temperature Min

-65°C

RoHS Durumu

ROHS3 Compliant

Iec Conformance

NO

Number Of Pcb Rows

2

Pozisyon Sayısı

15 (14 Power + 1 Leading Contact)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Plating

Silver, Gold

Option

GENERAL PURPOSE

Kurşunsuz Kodu

yes

Voltage Rated Dc

500V

Material Flammability Rating

UL94 V-0

Name Of Rows Loaded

Z,D

Terminal

Solder

Body Breadth

0.583 inch

Body Depth

0.984 inch

Contact Finish

Gold

Ambalaj

Bulk

Reference Standard

VDE,CSA

Sıra Sayısı

2

Connector Type

Header, Male Blades

Contact Resistance

8mOhm

Akım Değeri

15A

Dielectric Withstanding Voltage

3100VAC V

Length Termination

0.118 inch

Fabrika Tedarik Süresi

4 Weeks

Body Length Or Diameter

3.701 inch

Total Number Of Contacts

15

Pcb Contact Pattern

STAGGERED

Montaj Tipi

Through Hole, Right Angle

Housing Material

Thermoplastic

Pitch

0.400 10.16mm

Material Insulation

Thermoplastic, Glass Filled

Mil Conformance

NO

Style

H 15

HTS Kodu

8536.69.40.40
