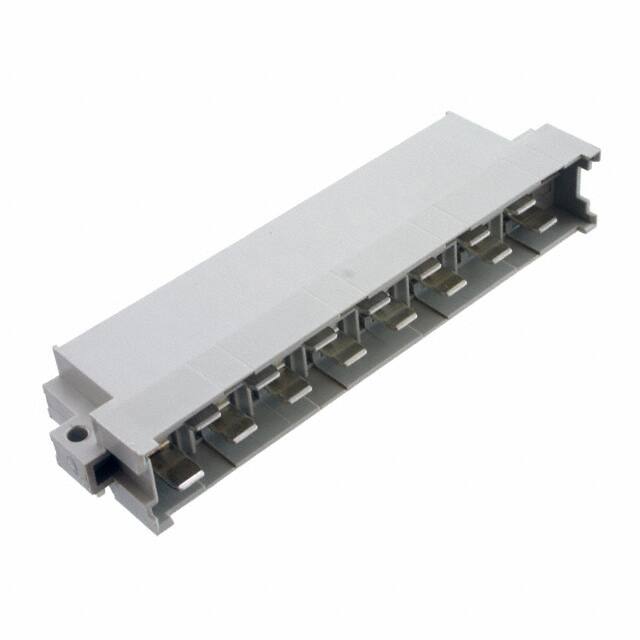

09061152921

Teknik Özellikler

Maks. Çalışma Sıcaklığı

125°C

Mixed Contacts

YES

Parça Durumu

Active

Gender

Male

Filter Feature

NO

Pcb Contact Row Spacing

5.08 mm

Orientation

Right Angle

Contact Materials

NOT SPECIFIED

HTS Kodu

8536.69.40.40

Mil Conformance

NO

Style

H 15

Montaj Tipi

Through Hole, Right Angle

Pcb Contact Pattern

STAGGERED

Material Insulation

Thermoplastic, Glass Filled

Housing Material

Thermoplastic

Pitch

0.200 5.08mm

Reach Svhc

No SVHC

Total Number Of Contacts

15

Fabrika Tedarik Süresi

4 Weeks

Seri

DIN 41612

Length Tail

3mm

Polarization Key

POLARIZED HOUSING

Number Of Positions Loaded

All

Min. Çalışma Sıcaklığı

-55°C

Pin Sayısı

15

Reliability

COMMERCIAL

Insulation Resistance

1000000000000Ohm

Montaj

Through Hole

Kurşunsuz Kodu

yes

Option

GENERAL PURPOSE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pozisyon Sayısı

15 (14 Power + 1 Leading Contact)

Depth

23.86mm

Contact Plating

Silver, Gold

Number Of Pcb Rows

2

RoHS Durumu

ROHS3 Compliant

Iec Conformance

NO

Yükseklik

24.75mm

Ul Flammability Code

94V-0

ECCN Kodu

EAR99
