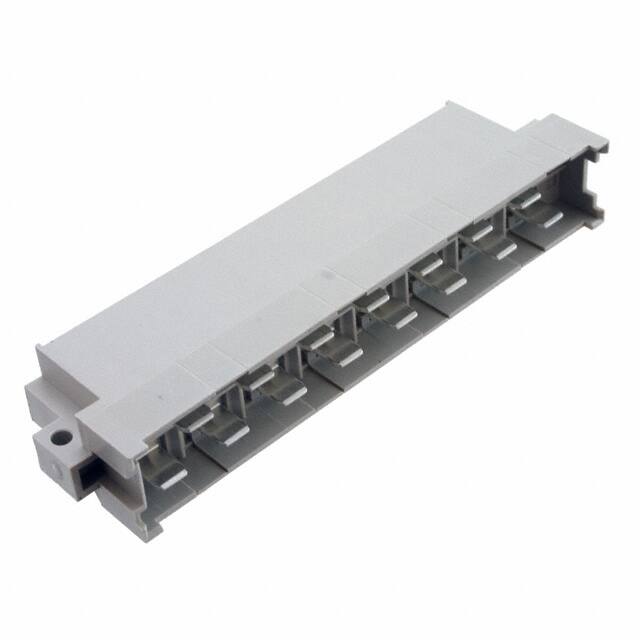

09061152911

Teknik Özellikler

ECCN Kodu

EAR99

Din Conformance

YES

JESD-609 Kodu

e3

Max Current Rating

15A

Test Voltage

3.1kV

RoHS Durumu

ROHS3 Compliant

Iec Conformance

NO

Yükseklik

14.8mm

Ul Flammability Code

94V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pozisyon Sayısı

15 (Power)

Depth

23.86mm

Contact Plating

Silver, Gold

Number Of Pcb Rows

2

Montaj

Through Hole

Kurşunsuz Kodu

yes

Option

GENERAL PURPOSE

Uzunluk

93.95mm

Terminal

Solder

Name Of Rows Loaded

Z,D

Material Flammability Rating

UL94 V-0

Ambalaj

Bulk

Reference Standard

VDE,CSA

Sıra Sayısı

2

Body Breadth

0.583 inch

Contact Finish

Gold

Connector Type

Header, Male Blades

Dielectric Withstanding Voltage

3100VAC V

Flammability Rating

UL94 V-0

Contact Resistance

8MOhm

Akım Değeri

15A

Reach Svhc

No SVHC

Total Number Of Contacts

15

Fabrika Tedarik Süresi

16 Weeks

Lead Pitch

5.08mm

Mil Conformance

NO

Style

H 15

Montaj Tipi

Through Hole, Right Angle

Pcb Contact Pattern

STAGGERED

Material Insulation

Thermoplastic, Glass Filled
