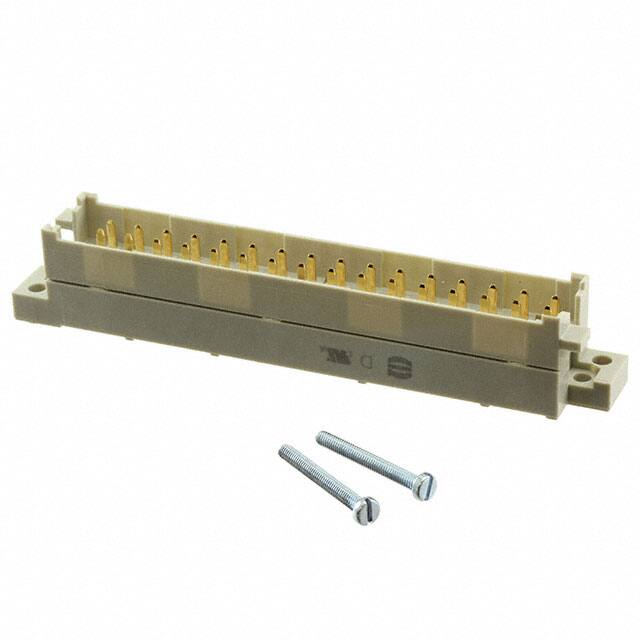

09060322905

Teknik Özellikler

Fabrika Tedarik Süresi

13 Weeks

Total Number Of Contacts

32

Mil Conformance

NO

Style

F

Housing Material

Thermoplastic

Pitch

0.200 5.08mm

Material Insulation

Thermoplastic, Glass Filled

Pcb Contact Pattern

RECTANGULAR

Montaj Tipi

Through Hole

Parça Durumu

Active

Mixed Contacts

NO

Orientation

Straight

Pcb Contact Row Spacing

5.08 mm

Filter Feature

NO

Gender

Male

Number Of Positions Loaded

32

Reliability

COMMERCIAL

Polarization Key

POLARIZED HOUSING

Seri

DIN 41612

Max Current Rating

6A

JESD-609 Kodu

e4

Mating Contact Row Spacing

0.2 inch

Din Conformance

YES

Level Class

1

Iec Conformance

NO

RoHS Durumu

ROHS3 Compliant

Ul Flammability Code

94V-0

Pozisyon Sayısı

48 (Power)

Depth

14.7mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Pcb Rows

3

Kurşunsuz Kodu

yes

Montaj

Through Hole

Option

GENERAL PURPOSE

Terminal

Solder

Rated Current Signal

6A

Material Flammability Rating

UL94 V-0

Name Of Rows Loaded

Z,B

Durability

500 Cycles

Sıra Sayısı

3
