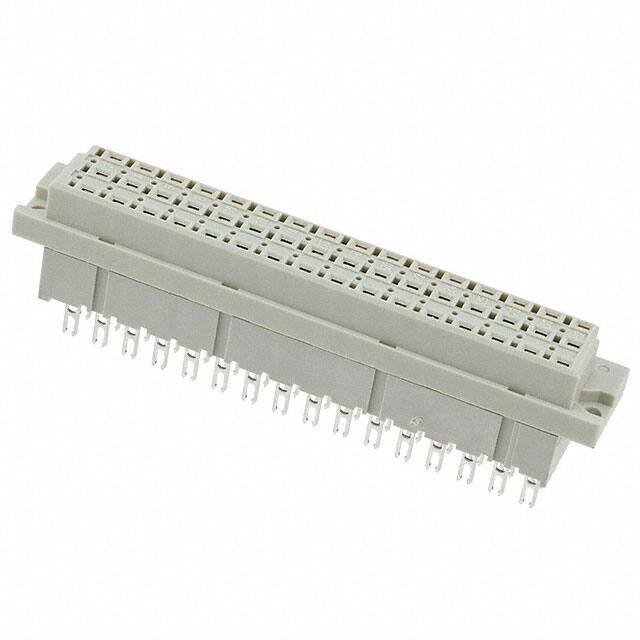

09052487823

Teknik Özellikler

Akım Değeri

6A

Mil Conformance

NO

Empty Shell

NO

Dielectric Withstanding Voltage

1550VAC V

Mating Contact Row Spacing

0.2 inch

Insertion Forcemax

1.5568 N

Total Number Of Contacts

48

Contact Resistance

15mOhm

Parça Durumu

Active

Material Insulation

Polybutylene Terephthalate (PBT), Glass Filled

Flammability Rating

UL94 V-0

Mixed Contacts

NO

JESD-609 Kodu

e4

Contact Finish

Gold

Style

E

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-55°C~125°C

Pitch

0.200 5.08mm

Withdrawl Forcemin

1.112 N

Seri

DIN 41612

Filter Feature

NO

Sıra Sayısı

3

Body Breadth

0.618 inch

Ul Flammability Code

94V-0

Rated Current Signal

6A

RoHS Durumu

ROHS3 Compliant

Insulation Resistance

1000000000000Ohm

Montaj Tipi

Panel Mount

Iec Conformance

NO

Din Conformance

YES

Montaj

Panel

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Body Depth

0.85 inch

Reference Standard

UL, CSA

Pozisyon Sayısı

48 (Power)

Terminal

Solder Lug

Kurşunsuz Kodu

yes

Connector Type

Receptacle, Female Sockets
