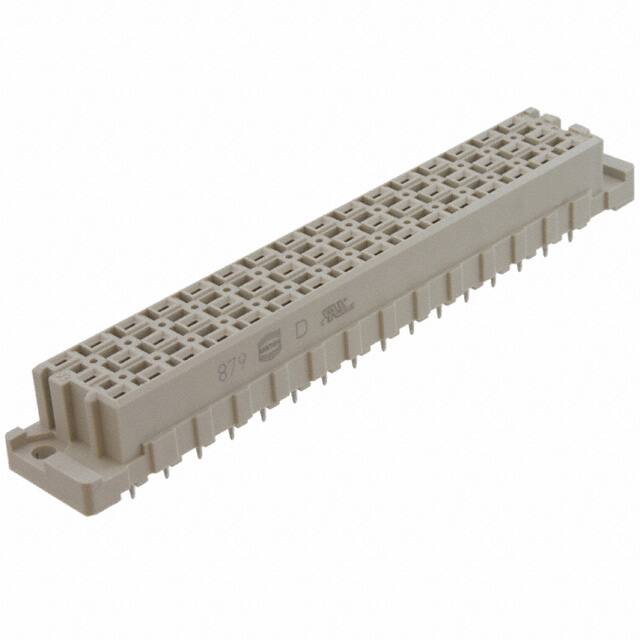

09052486832

Teknik Özellikler

Pitch

0.200 5.08mm

Filter Feature

NO

Body Breadth

0.618 inch

Rated Current Signal

6A

Gender

Female

Iec Conformance

NO

Montaj Tipi

Panel Mount, Through Hole

Material Flammability Rating

UL94 V-0

Montaj

Panel, Through Hole

Housing Material

Polybutylene

Terminal

Solder

Kurşunsuz Kodu

yes

Uzunluk

94mm

Parça Durumu

Active

Number Of Pcb Rows

3

Number Of Contacts

48

Material Insulation

Thermoplastic, Glass Filled

Depth

15.5mm

Ambalaj

Bulk

Contact Finish

Gold

Pcb Contact Row Spacing

5.08 mm

Seri

DIN 41612

Sıra Sayısı

3

Ul Flammability Code

94V-0

RoHS Durumu

ROHS3 Compliant

Insulation Resistance

1000000000000Ohm

Din Conformance

YES

Min. Çalışma Sıcaklığı

-55°C

Number Of Positions Loaded

All

Maks. Çalışma Sıcaklığı

125°C

Orientation

Straight

Pozisyon Sayısı

48 (Power)

Fabrika Tedarik Süresi

4 Weeks

Connector Type

Receptacle, Female Sockets

Akım Değeri

6A

Mil Conformance

NO

Empty Shell

NO

Dielectric Withstanding Voltage

1550VAC V

Contact Materials

Nickel, Tin

Max Current Rating

6A
