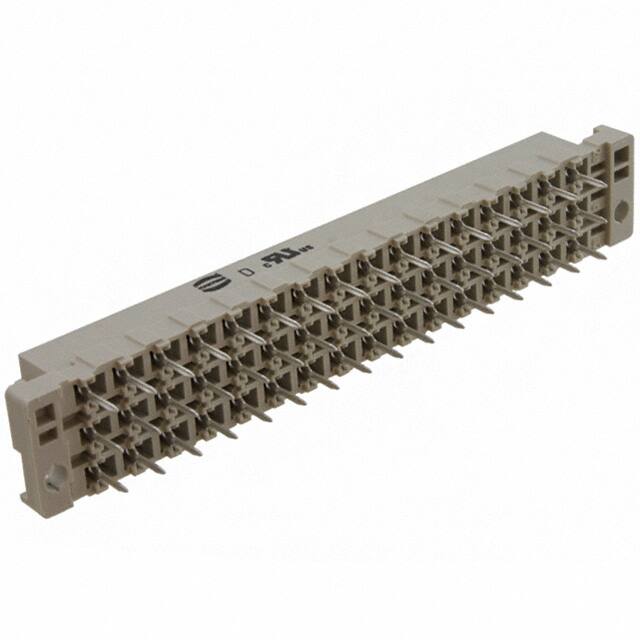

09052486831

Teknik Özellikler

Depth

15.5mm

Contact Finish

Gold

Ambalaj

Bulk

Number Of Contacts

48

Number Of Pcb Rows

3

Parça Durumu

Active

Material Insulation

Thermoplastic, Glass Filled

Length Tail

4mm

Housing Material

Thermoplastic

Uzunluk

94.9mm

Kurşunsuz Kodu

yes

Terminal

Solder

Material Flammability Rating

UL94 V-0

Montaj

Panel, Through Hole

Montaj Tipi

Panel Mount, Through Hole

Iec Conformance

NO

Gender

Receptacle

Body Breadth

0.618 inch

Test Voltage

1.55kV

Rated Current Signal

6A

Pitch

0.200 5.08mm

Filter Feature

NO

Style

E

Nem Hassasiyeti (MSL)

1 (Unlimited)

JESD-609 Kodu

e4

Contact Resistance

15mOhm

Mixed Contacts

NO

Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

Insertion Forcemax

1.5568 N

Level Class

2

Empty Shell

NO

Dielectric Withstanding Voltage

1550VAC V

Akım Değeri

6A

Mil Conformance

NO

Max Current Rating

6A

Reach Svhc

No SVHC

Contact Materials

Gold, Nickel

Number Of Positions Loaded

All

Connector Type

Receptacle, Female Sockets
