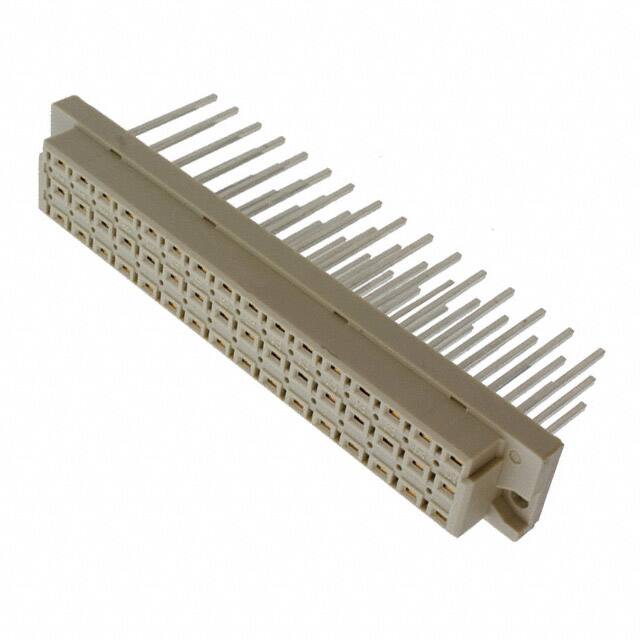

09052486821

Teknik Özellikler

Pitch

0.200 5.08mm

Filter Feature

NO

Body Breadth

0.618 inch

Rated Current Signal

6A

Test Voltage

1.55kV

Montaj Tipi

Panel Mount, Through Hole

Gender

Female

Iec Conformance

NO

Material Flammability Rating

UL94 V-0

Montaj

Panel, Through Hole

Housing Material

Thermoplastic

Terminal

Wire Wrap

Uzunluk

94.9mm

Kurşunsuz Kodu

yes

Length Tail

20mm

Number Of Contacts

48

Number Of Pcb Rows

3

Parça Durumu

Active

Material Insulation

Thermoplastic, Glass Filled

Depth

15.6mm

Contact Finish

Gold

Ambalaj

Bulk

Pcb Contact Row Spacing

5.08 mm

Seri

DIN 41612

Sıra Sayısı

3

Ul Flammability Code

94V-0

RoHS Durumu

ROHS3 Compliant

Insulation Resistance

1000000000000Ohm

Din Conformance

YES

Min. Çalışma Sıcaklığı

-55°C

Number Of Positions Loaded

All

Orientation

Straight

Pozisyon Sayısı

48 (Power)

Maks. Çalışma Sıcaklığı

125°C

Connector Type

Receptacle, Female Sockets

Fabrika Tedarik Süresi

4 Weeks

Mil Conformance

NO

Akım Değeri

6A

Empty Shell

NO

Dielectric Withstanding Voltage

1550VAC V
