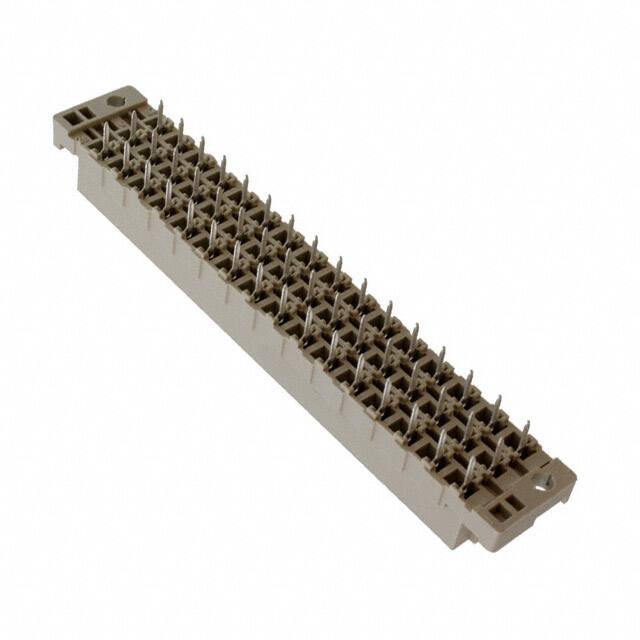

09052482831

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Contact Finish

Gold

Style

D

JESD-609 Kodu

e4

Reliability

COMMERCIAL

Depth

15.5mm

Flammability Rating

UL94 V-0

Mixed Contacts

NO

Material Insulation

Thermoplastic, Glass Filled

Parça Durumu

Active

Number Of Pcb Rows

3

Option

GENERAL PURPOSE

Total Number Of Contacts

48

Durability

500 Cycles

Level Class

1

Max Current Rating

6A

Mating Contact Row Spacing

0.2 inch

Empty Shell

NO

Mil Conformance

NO

Akım Değeri

6A

Fabrika Tedarik Süresi

9 Weeks

Connector Type

Receptacle, Female Sockets

Kurşunsuz Kodu

yes

Uzunluk

94.9mm

Maks. Çalışma Sıcaklığı

125°C

Terminal

Solder

Orientation

Straight

Pozisyon Sayısı

48 (Power)

Name Of Rows Loaded

A,C,E

Number Of Positions Loaded

All

Housing Material

PBT

Min. Çalışma Sıcaklığı

-55°C

Material Flammability Rating

UL94 V-0

Montaj

Panel, Through Hole

Gender

Female

Din Conformance

YES

Iec Conformance

NO

Montaj Tipi

Panel Mount, Through Hole

RoHS Durumu

ROHS3 Compliant
