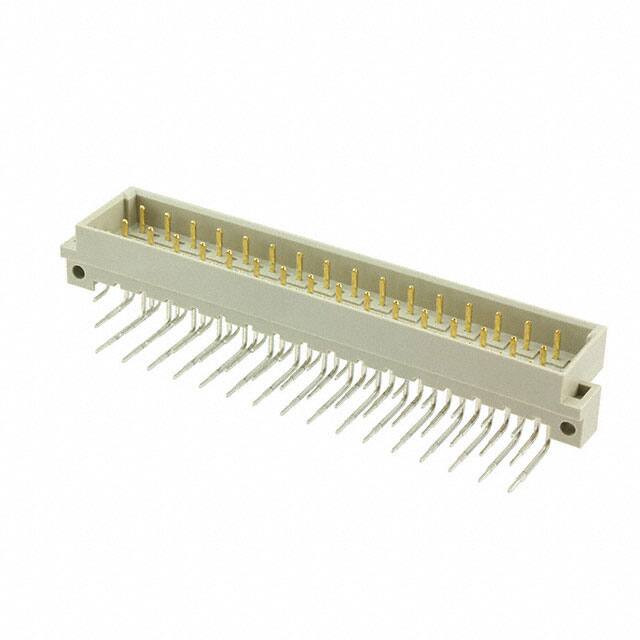

09051487921

Teknik Özellikler

Terminal

Solder

Orientation

Right Angle

Pozisyon Sayısı

48 (Power)

Fabrika Tedarik Süresi

7 Weeks

Connector Type

Header, Male Pins

Kurşunsuz Kodu

yes

Uzunluk

93.95mm

Number Of Positions Loaded

All

Din Conformance

YES

Iec Conformance

NO

Montaj Tipi

Through Hole, Right Angle

Montaj

Through Hole

Material Flammability Rating

UL94 V-0

Contact Plating

Gold

RoHS Durumu

ROHS3 Compliant

Insulation Resistance

1000000000000Ohm

Rated Current Signal

6A

Ul Flammability Code

94V-0

Filter Feature

NO

Seri

DIN 41612

Sıra Sayısı

3

Pcb Contact Row Spacing

5.08 mm

Çalışma Sıcaklığı

-55°C~125°C

Pitch

0.200 5.08mm

Withdrawl Forcemin

1.251 N

JESD-609 Kodu

e4

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish

Gold or Gold-Palladium

Style

E

Depth

22.8mm

Flammability Rating

UL94 V-0

Mixed Contacts

NO

Material Insulation

Thermoplastic, Glass Filled

Number Of Pcb Rows

3

Parça Durumu

Active

Contact Resistance

15mOhm

Total Number Of Contacts

48

Insertion Forcemax

1.5568 N

Max Current Rating

6A
