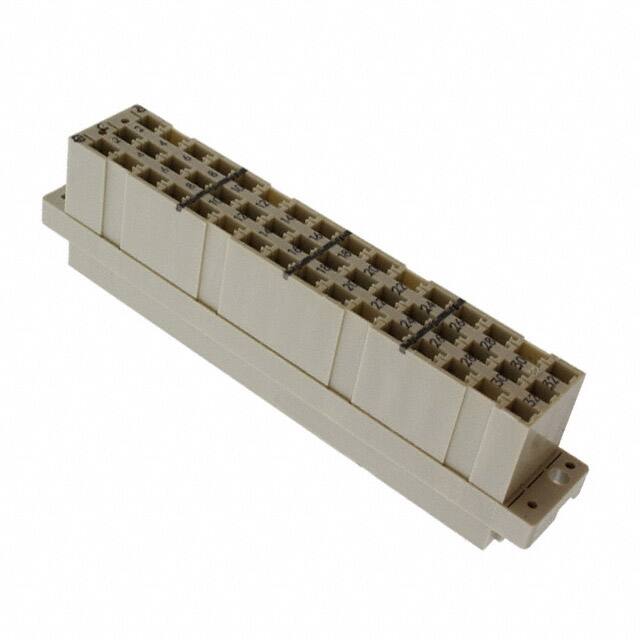

09050483202

Teknik Özellikler

Mating Contact Row Spacing

0.2 inch

ECCN Kodu

EAR99

Number Of Contacts

48

Parça Durumu

Active

Ambalaj

Bulk

Contact Finish Mating

GOLD OVER NICKEL

Depth

26.3mm

Note

Contacts Not Included

Filter Feature

NO

Pitch

0.200 5.08mm

Body Breadth

0.618 inch

Bodyshell Style

PLUG

Montaj

Free Hanging

Montaj Tipi

Free Hanging (In-Line)

Iec Conformance

NO

Uzunluk

94.78mm

Kurşunsuz Kodu

yes

Terminal

Crimp

Name Of Rows Loaded

A,C,E

Wirecable Gauge

20 AWG

Reference Standard

UL, CSA

Housing Material

Thermoplastic

Reach Svhc

No SVHC

Max Current Rating

6A

Contact Materials

NOT SPECIFIED

Connector Style

DIN 41612, Type E

Empty Shell

YES

Dielectric Withstanding Voltage

1550VAC V

Mil Conformance

NO

Akım Değeri

6A

Insertion Forcemax

1.5568 N

Mixed Contacts

NO

Contact Resistance

20mOhm

Option

GENERAL PURPOSE

Connector Usage

Receptacle

Contact Design

STRIP OR LOOSE

Cable Types

WIRE, DISCRETE

Nem Hassasiyeti (MSL)

1 (Unlimited)

JESD-609 Kodu

e4

Reliability

COMMERCIAL
