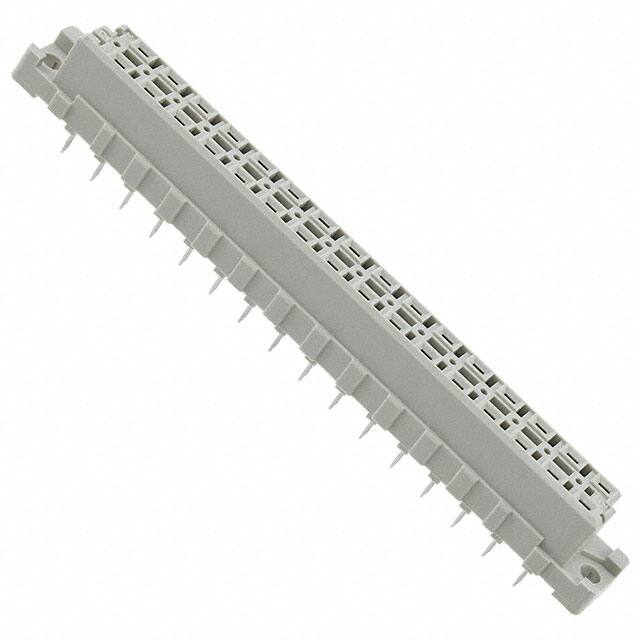

09042322831

Teknik Özellikler

Reliability

COMMERCIAL

Depth

10.5mm

Style

D

Contact Finish

Gold or Gold-Palladium

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

JESD-609 Kodu

e4

Option

GENERAL PURPOSE

Number Of Pcb Rows

2

Parça Durumu

Active

Material Insulation

Thermoplastic, Glass Filled

Flammability Rating

UL94 V-0

Mixed Contacts

NO

Durability

500 Cycles

Level Class

1

Total Number Of Contacts

32

Empty Shell

NO

Mil Conformance

NO

Akım Değeri

6A

Max Current Rating

6A

Name Of Rows Loaded

A,C

Number Of Positions Loaded

All

Uzunluk

94.9mm

Fabrika Tedarik Süresi

4 Weeks

Connector Type

Receptacle, Female Sockets

Kurşunsuz Kodu

yes

Orientation

Straight

Pozisyon Sayısı

32 (Power)

Terminal

Solder

RoHS Durumu

ROHS3 Compliant

Contact Plating

Gold

Material Flammability Rating

UL94 V-0

Montaj

Through Hole

Montaj Tipi

Through Hole

Din Conformance

YES

Iec Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Ul Flammability Code

94V-0

Rated Current Signal

6A

Pitch

0.200 5.08mm
