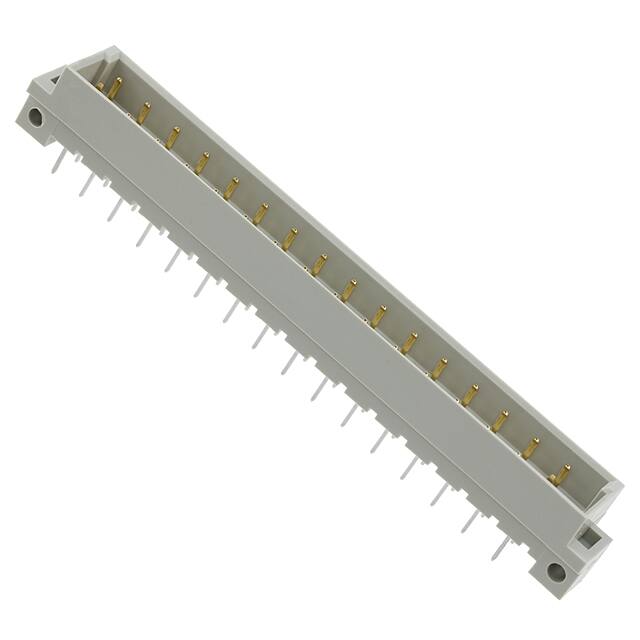

09041326952

Teknik Özellikler

Pcb Contact Row Spacing

5.08 mm

Çalışma Sıcaklığı

-55°C~125°C

Pitch

0.200 5.08mm

Sıra Sayısı

2

Filter Feature

NO

Seri

DIN 41612

Body Breadth

0.433 inch

Pcb Contact Pattern

RECTANGULAR

Rated Current Signal

6A

Ul Flammability Code

94V-0

Insulation Resistance

1000000000000Ohm

RoHS Durumu

ROHS3 Compliant

Montaj

Through Hole

Material Flammability Rating

UL94 V-0

Iec Conformance

NO

Din Conformance

YES

Montaj Tipi

Through Hole

Number Of Positions Loaded

All

Name Of Rows Loaded

A,C

Housing Material

PBT

Fabrika Tedarik Süresi

7 Weeks

Connector Type

Header, Male Pins

Kurşunsuz Kodu

yes

Terminal

Solder

Pozisyon Sayısı

32 (Power)

Empty Shell

NO

Dielectric Withstanding Voltage

1550VAC V

Akım Değeri

6A

Mil Conformance

NO

Durability

400 Cycles

Body Length Or Diameter

3.701 inch

Insertion Forcemax

1.5568 N

Total Number Of Contacts

32

Number Of Pcb Rows

2

Parça Durumu

Active

Contact Resistance

15mOhm

Option

GENERAL PURPOSE

Flammability Rating

UL94 V-0

Mixed Contacts

NO

Material Insulation

Polybutylene Terephthalate (PBT), Glass Filled
