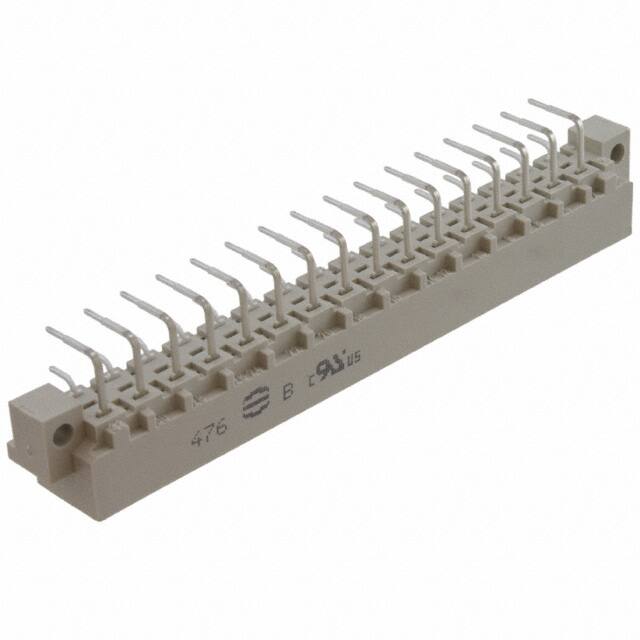

09041326921

Teknik Özellikler

Terminal

Solder

Kurşunsuz Kodu

yes

Uzunluk

10.9mm

Onay Kuruluşu

IEC

Housing Material

Glass

Name Of Rows Loaded

A,C

Gender

Male

Iec Conformance

NO

Montaj Tipi

Through Hole, Right Angle

Hole Diameter

1 mm

Working Voltage

125V

Material Flammability Rating

UL94 V-0

Montaj

Through Hole

Rated Current Signal

6A

HTS Kodu

8536.69.40.40

Test Voltage

1.55kV

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.433 inch

Filter Feature

NO

Pitch

0.200 5.08mm

Ambalaj

Bulk

Contact Finish

Gold

Depth

17.72mm

ECCN Kodu

EAR99

Material Insulation

Thermoplastic, Glass Filled

Parça Durumu

Active

Number Of Pcb Rows

2

Length Tail

3mm

Maks. Çalışma Sıcaklığı

125°C

Orientation

Right Angle

Pozisyon Sayısı

32 (Power)

Connector Type

Header, Male Pins

Fabrika Tedarik Süresi

4 Weeks

Number Of Positions Loaded

All

Din Conformance

YES

Lead Pitch

5.08mm

Min. Çalışma Sıcaklığı

-65°C

RoHS Durumu

ROHS3 Compliant

Pin Sayısı

32

Insulation Resistance

1000000000000Ohm
