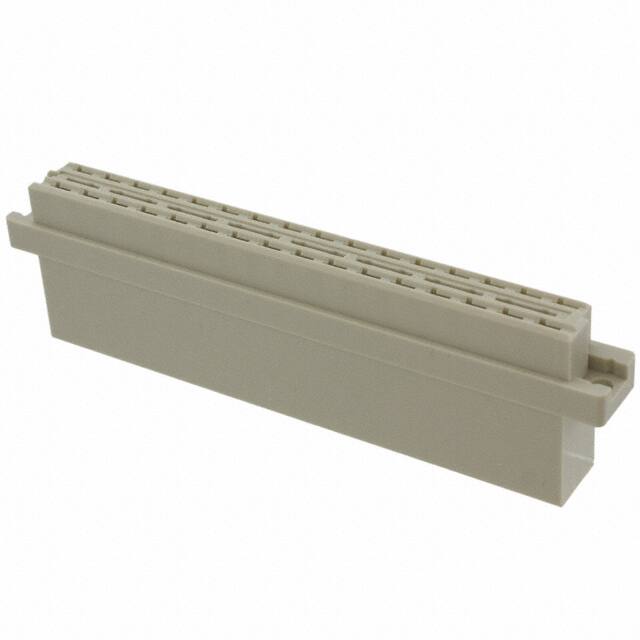

09040323213

Teknik Özellikler

Contact Pattern

RECTANGULAR

Ambalaj

Bulk

Contact Finish Mating

NOT SPECIFIED

Depth

26.3mm

Parça Durumu

Active

Bodyshell Style

PLUG

Body Breadth

0.417 inch

Filter Feature

NO

Note

Contacts Not Included

Number Of Conductors

ONE

Pitch

0.200 5.08mm

Kurşunsuz Kodu

yes

Uzunluk

94.78mm

Terminal

Crimp

Reference Standard

UL, CSA

Name Of Rows Loaded

A,C

Housing Material

Thermoplastic

Contact Style

BELLOWED TYPE

Working Voltage

125V

Montaj

Free Hanging

Iec Conformance

NO

Montaj Tipi

Free Hanging (In-Line)

Total Number Of Contacts

32

Insertion Forcemax

1.5568 N

Max Current Rating

6A

Reach Svhc

No SVHC

Contact Materials

Copper

Dielectric Withstanding Voltage

1550VAC V

Empty Shell

YES

Connector Style

DIN 41612, Type D

Akım Değeri

6A

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Nominal Gerilim

125V

Reliability

COMMERCIAL

Flammability Rating

UL94 V-0

Mixed Contacts

NO

Contact Design

STRIP OR LOOSE

Option

GENERAL PURPOSE

Contact Resistance

20mOhm
