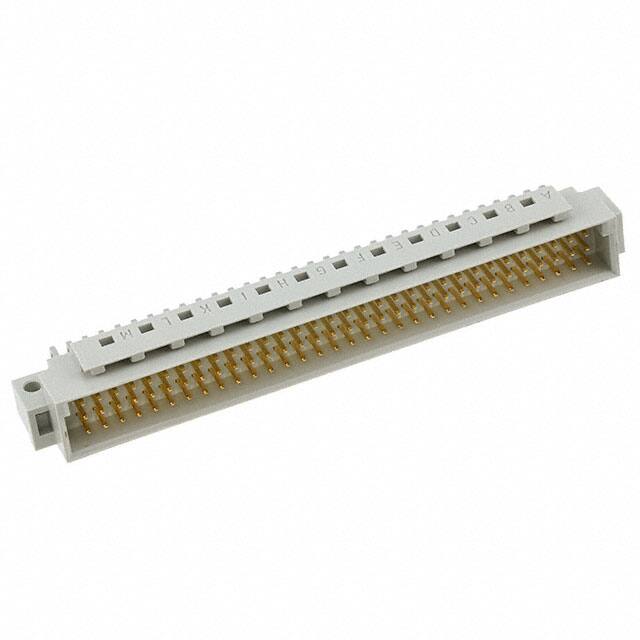

09036962921

Teknik Özellikler

Contact Finish

Gold or Gold-Palladium

Style

C

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Depth

17.72mm

Material Insulation

Polybutylene Terephthalate (PBT), Glass Filled

Flammability Rating

UL94 V-0

Mixed Contacts

NO

ECCN Kodu

EAR99

Option

GENERAL PURPOSE

Number Of Pcb Rows

3

Parça Durumu

Active

Total Number Of Contacts

96

Level Class

1

Akım Değeri

2A

Mil Conformance

NO

Uzunluk

94mm

Kurşunsuz Kodu

yes

Connector Type

Header, Male Pins

Fabrika Tedarik Süresi

4 Weeks

Pozisyon Sayısı

96

Orientation

Right Angle

Terminal

Solder

Number Of Positions Loaded

All

Montaj

Through Hole

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole, Right Angle

Iec Conformance

NO

Din Conformance

YES

Contact Plating

Gold

RoHS Durumu

ROHS3 Compliant

Ul Flammability Code

94V-0

Rated Current Signal

2A

Sıra Sayısı

3

Seri

DIN 41612

Number Of Conductors

ONE

Filter Feature

NO

Pitch

0.100 2.54mm

Pcb Contact Row Spacing

2.54 mm

Çalışma Sıcaklığı

-55°C~125°C
