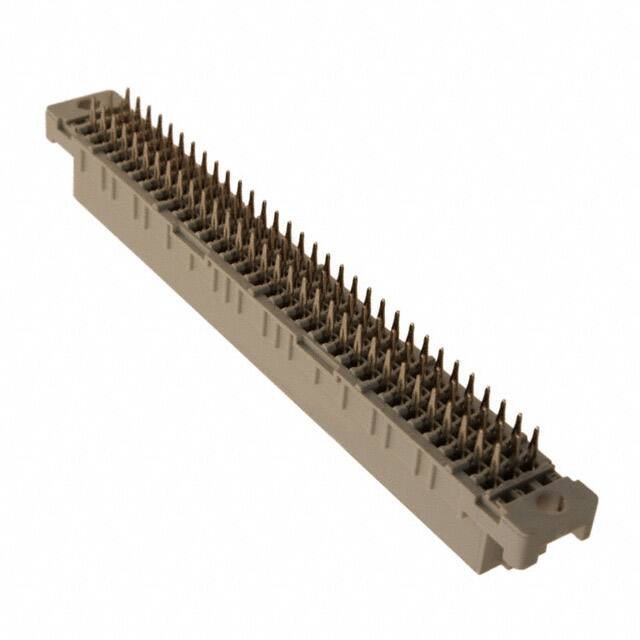

09032962850

Teknik Özellikler

Mixed Contacts

NO

Flammability Rating

UL94 V-0

Length Tail

4.5mm

Insertion Forcemax

.9452 N

RoHS Durumu

ROHS3 Compliant

Orientation

Straight

Option

GENERAL PURPOSE

Number Of Pcb Rows

3

Çalışma Sıcaklığı

-40°C~105°C

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Contact Plating

Gold

Contact Resistance

20mOhm

Housing Material

Polybutylene

Pozisyon Sayısı

96

Filter Feature

NO

Material Insulation

Thermoplastic, Glass Filled

Pitch

0.100 2.54mm

Uzunluk

94.8mm

Level Class

1

Pcb Contact Row Spacing

2.54 mm

Style

C

JESD-609 Kodu

e4

ECCN Kodu

EAR99

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

2A

Iec Conformance

NO

Seri

DIN 41612

Rated Current Signal

2A

Polarization Key

ENDS

Ambalaj

Bulk

Gender

Receptacle

Ul Flammability Code

94V-0

Housing Color

Grey

Connector Type

Receptacle, Female Sockets

Total Number Of Contacts

96

Kurşunsuz Kodu

yes

Din Conformance

YES

Max Current Rating

2A
