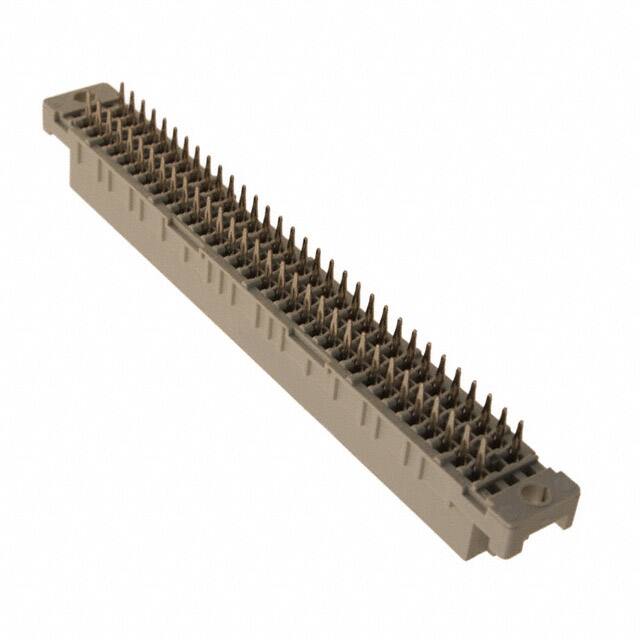

09032646850

Teknik Özellikler

Mixed Contacts

NO

Length Tail

4.5mm

Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Reach Svhc

No SVHC

Çalışma Sıcaklığı

-40°C~105°C

Material Flammability Rating

UL94 V-0

Test Voltage

1kV

Filter Feature

NO

Material Insulation

Thermoplastic, Glass Filled

Reference Standard

UL

Uzunluk

94.9mm

JESD-609 Kodu

e4

Level Class

2

Pcb Contact Row Spacing

5.08 mm

Iec Conformance

NO

ECCN Kodu

EAR99

Number Of Positions Loaded

64

Akım Değeri

2A

Ul Flammability Code

94V-0

Polarization Key

POLARIZED HOUSING

Name Of Rows Loaded

A,C

Lead Pitch

2.54mm

Contact Materials

Copper

Kurşunsuz Kodu

yes

Montaj

Through Hole

Max Current Rating

2A

Montaj Tipi

Through Hole

Mil Conformance

NO

Depth

10.5mm

RoHS Durumu

ROHS3 Compliant

Orientation

Straight

Number Of Pcb Rows

2

Contact Plating

Gold, Nickel

Contact Resistance

15mOhm

Parça Durumu

Active

Pozisyon Sayısı

96

Housing Material

Thermoplastic

Pitch

0.100 2.54mm

Style

C
