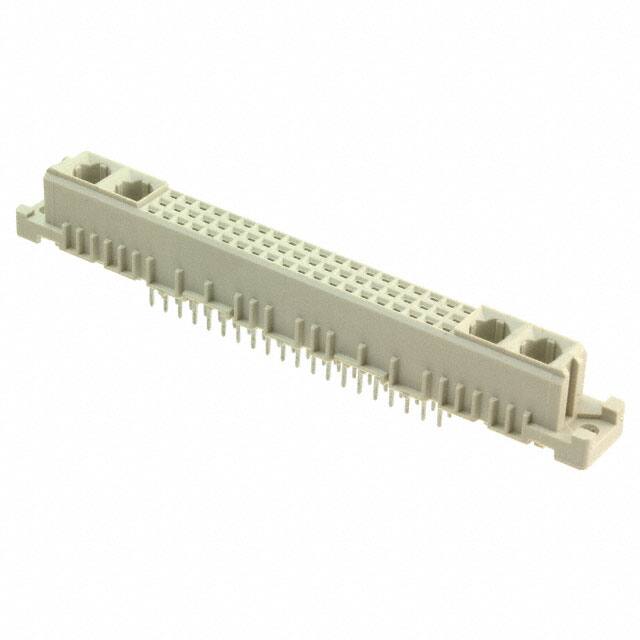

09032606865

Teknik Özellikler

Withdrawl Forcemin

.9174 N

Montaj Tipi

Through Hole

Mil Conformance

NO

Contact Materials

Copper

Kurşunsuz Kodu

yes

Montaj

Through Hole

Polarization Key

POLARIZED HOUSING

Contact Finish

Gold or Gold-Palladium

Ul Flammability Code

94V-0

Name Of Rows Loaded

A,B,C

Dielectric Withstanding Voltage

1000VAC V

Level Class

2

JESD-609 Kodu

e4

Number Of Positions Loaded

60

Akım Değeri

2A

Iec Conformance

NO

Reference Standard

UL

Filter Feature

NO

Material Insulation

Polybutylene Terephthalate (PBT), Glass Filled

Length Termination

0.177 inch

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-55°C~125°C

Reach Svhc

No SVHC

Mixed Contacts

YES

Insertion Forcemax

.9174 N

Flammability Rating

UL94 V-0

Mating Contact Row Spacing

0.1 inch

Reliability

COMMERCIAL

Din Conformance

YES

Fabrika Tedarik Süresi

8 Weeks

Terminal

Solder

Sıra Sayısı

3

Insulation Resistance

1000000000000Ohm

Rated Current Signal

2A

Ambalaj

Bulk

Gender

Male

Connector Type

Receptacle, Female Sockets

Total Number Of Contacts

64

Style

M-flat
