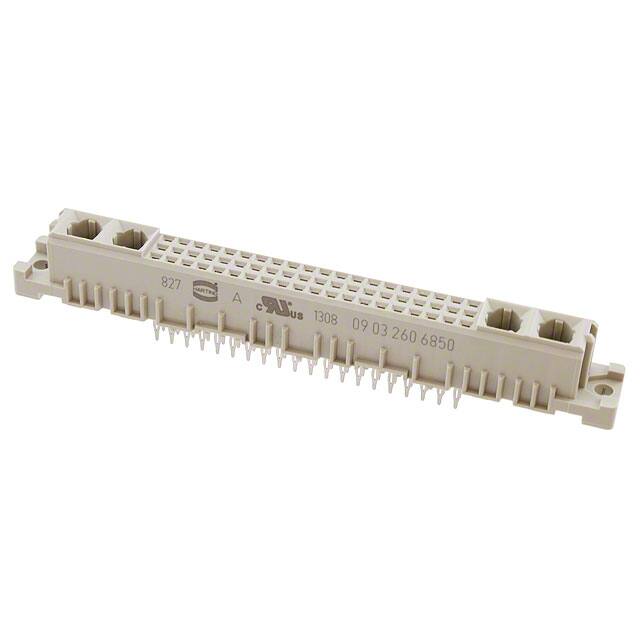

09032606850

Teknik Özellikler

Pitch

0.100 2.54mm

Length Termination

0.177 inch

Material Insulation

Thermoplastic, Glass Filled

Filter Feature

NO

Pozisyon Sayısı

64 (60 + 4 Coax, Fiber Optic or Power)

Body Depth

0.496 inch

Number Of Pcb Rows

3

Option

GENERAL PURPOSE

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-40°C~105°C

Flammability Rating

UL94 V-0

Mixed Contacts

YES

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Through Hole

Mating Contact Row Spacing

0.1 inch

Kurşunsuz Kodu

yes

Sıra Sayısı

3

Montaj

Through Hole

Terminal

Press-Fit

Fabrika Tedarik Süresi

8 Weeks

Ul Flammability Code

94V-0

Ambalaj

Bulk

Polarization Key

POLARIZED HOUSING

Name Of Rows Loaded

A,B,C

Connector Type

Receptacle, Female Sockets

Total Number Of Contacts

60

JESD-609 Kodu

e4

Pcb Contact Pattern

RECTANGULAR

Style

M

Level Class

2

Contact Pattern

RECTANGULAR

Number Of Conductors

ONE

Seri

DIN 41612

Number Of Positions Loaded

60

Nem Hassasiyeti (MSL)

1 (Unlimited)
