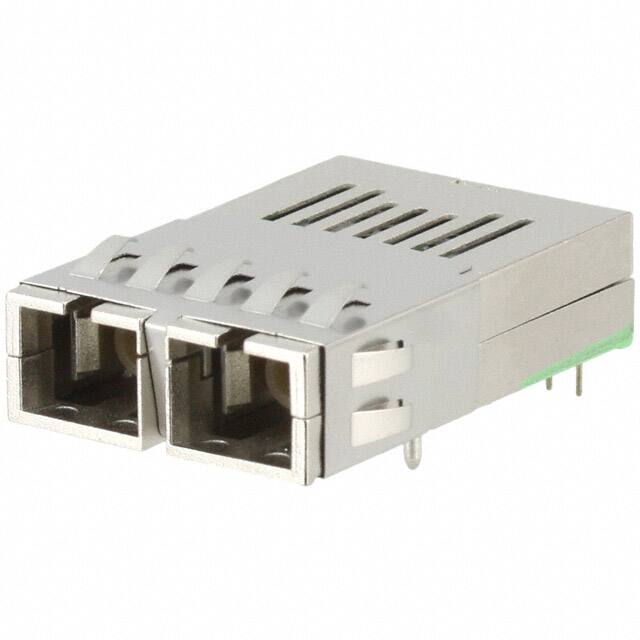

HFBR-53A5VEMZ

Teknik Özellikler

Besleme Gerilimi

3.3V

Data Rate

1.25Gbd

Operating Wavelengthnom

850 nm

Communication Standard

GBE

Fiber Type

50/125, 62.5/125, MMF

Nem Hassasiyeti (MSL)

1 (Unlimited)

JESD-609 Kodu

e3

Montaj Tipi

Through Hole

Operating Wavelengthmax

860 nm

Connector Type

SC

Yüzey Montaj

NO

ECCN Kodu

EAR99

Terminal Kaplaması

Matte Tin (Sn)

Optical Power Outputnom

0.211mW

Body Length Or Diameter

39.6mm

Body Height

9.8mm

Operating Temperature Max

70°C

Additional Feature

1 X 9 ARRAY, IT ALSO OPERATES FROM 770NM TO 860NM, SENSITIVITY FOR THE 50/125 FIBER TYPE IS 13.5DBM

Besleme Gerilimi

3.14V~3.47V

Yayın Yılı

2006

HTS Kodu

8517.62.00.50

Return Lossmin

12 dB

Rise Time

400ps

Operating Wavelengthmin

830 nm

Builtin Feature

AMPLIFIER

Parça Durumu

Active

Fabrika Tedarik Süresi

8 Weeks

RoHS Durumu

ROHS3 Compliant

Emitterdetector Type

LASER, PIN PHOTODIODE

Wavelength Peak

850 nm

Applications

Ethernet

Body Breadth

25.4 mm
