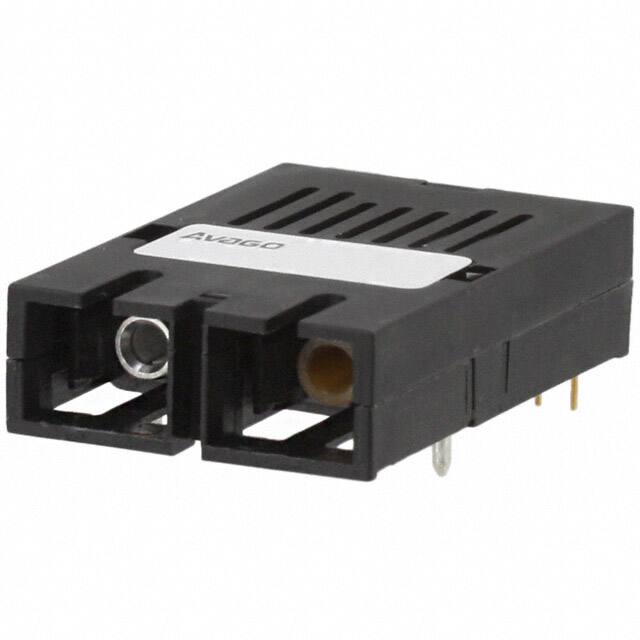

AFCT-5805AZ

Teknik Özellikler

Emitterdetector Type

LASER, PIN PHOTODIODE

Optical Power Outputnom

0.07mW

Fiber Type

SMF

HTS Kodu

8517.62.00.50

ECCN Kodu

5A991.B.5.A

Fabrika Tedarik Süresi

8 Weeks

Operating Temperature Max

85°C

Operating Temperature Min

-40°C

RoHS Durumu

ROHS3 Compliant

Connector Type

SC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Applications

General Purpose

Body Height

9.8mm

Data Rate

155Mbps

Communication Standard

ATM, OC-3, SDH, SONET, STM-1, TELCORDIA

Additional Feature

2 X 9 ARRAY

Operating Wavelengthnom

1300 nm

Yayın Yılı

2011

Body Breadth

25.4 mm

Besleme Gerilimi

3.3V 5V

Besleme Gerilimi

3.3V

Yüzey Montaj

NO

Builtin Feature

AMPLIFIER

Body Length Or Diameter

39.6mm

Montaj Tipi

Through Hole

Parça Durumu

Active
