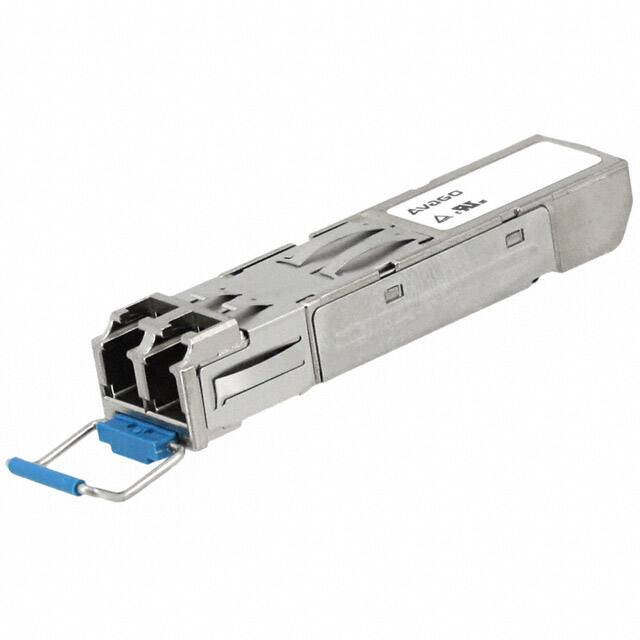

AFCT-5715PZ

Teknik Özellikler

Ripple Current High Frequency

1.56A @ 10kHz

HTS Kodu

8517.62.00.50

Fiber Type

50, 62.5, MMF, SMF

Boyut / Ölçü

0.709 Dia x 1.181 L (18.00mm x 30.00mm)

Optical Power Outputnom

0.237mW

Kapasitans

3300µF

Çalışma Sıcaklığı

-55°C ~ 125°C

Emitterdetector Type

LASER

Connector Type

LC Duplex

RoHS Durumu

ROHS3 Compliant

Operating Temperature Min

-10°C

Operating Temperature Max

85°C

ECCN Kodu

5A991.B.5.A

Fabrika Tedarik Süresi

8 Weeks

Lifetime Temp

8000 Hrs @ 125°C

Fiber Optic Device Type

TRANSCEIVER

Empedans

150 mOhms

Kılıf / Paket

Axial, Can

Nem Hassasiyeti (MSL)

1 (Unlimited)

Data Rate

1.25Gbd

Applications

Ethernet

Body Height

12.1mm

Paket

Bulk

Seri

118 AHT

Body Breadth

16.25 mm

Yayın Yılı

2012

Operating Wavelengthnom

1313 nm

Wavelength

1310nm

Ambalaj

Bulk

Communication Standard

GBE, GR-468

Yüzey Montaj

NO

Besleme Gerilimi

3.3V

Return Lossmin

12 dB

JESD-609 Kodu

e4

Besleme Gerilimi

3.14V~3.47V

Esr Equivalent Series Resistance

165 mOhm

Montaj Tipi

Pluggable, SFP

Body Length Or Diameter

42.3mm

Builtin Feature

AMPLIFIER

Nominal Gerilim

16V
