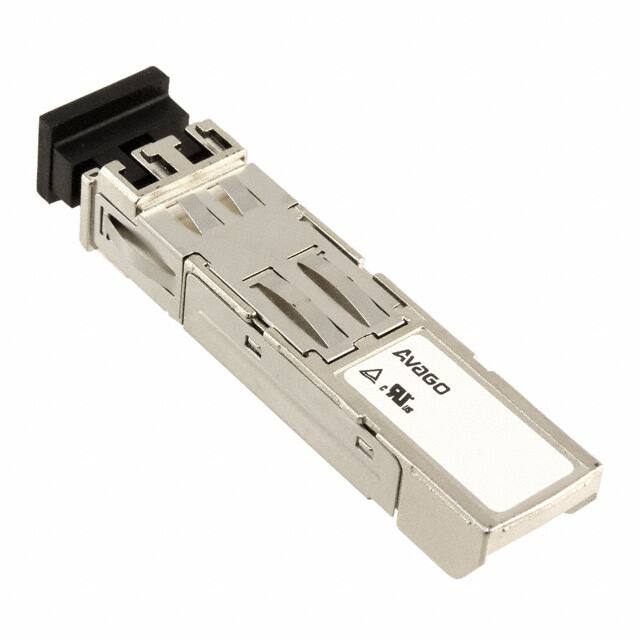

AFCT-5715LZ

Teknik Özellikler

Emitterdetector Type

LASER

HTS Kodu

8517.62.00.50

Fiber Type

50, 62.5, MMF, SMF

Optical Power Outputnom

0.237mW

Operating Temperature Min

-10°C

Operating Temperature Max

85°C

ECCN Kodu

5A991.B.5.A

Fabrika Tedarik Süresi

8 Weeks

Connector Type

LC Duplex

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fiber Optic Device Type

TRANSCEIVER

Data Rate

1.25Gbd

Body Height

12.1mm

Applications

Ethernet

Communication Standard

GBE, GR-468

Body Breadth

16.25 mm

Operating Wavelengthnom

1313 nm

Besleme Gerilimi

3.3V

Besleme Gerilimi

3.14V~3.47V

JESD-609 Kodu

e4

Return Lossmin

12 dB

Yüzey Montaj

NO

Body Length Or Diameter

42.3mm

Builtin Feature

AMPLIFIER

Montaj Tipi

Pluggable, SFP

Mounting Feature

PANEL MOUNT

Terminal Kaplaması

Gold (Au)

Parça Durumu

Active
