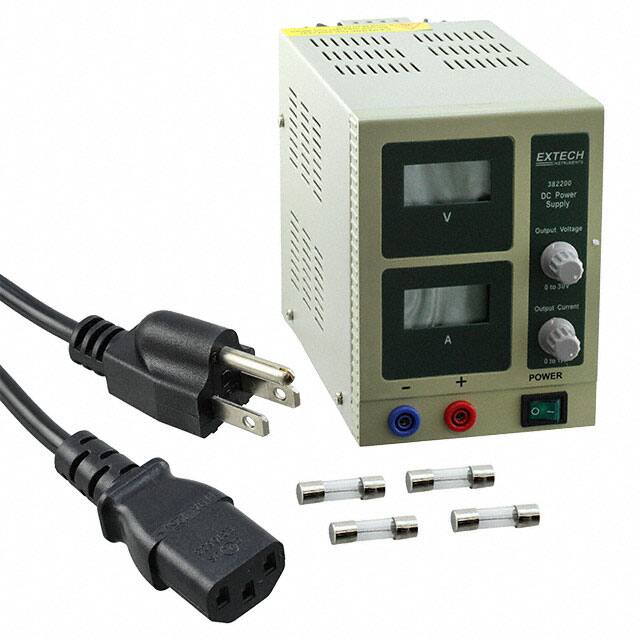

382200

Teknik Özellikler

Accuracy Voltmeter Ammeter

±1.5%; ±2%

Birim Ağırlık

4.409 lbs

Parça Durumu

Active

Number Of Characters

3 (2)

Özellikler

Constant Current and Constant Voltage Indicators, Dual Display(s)

Voltage Regulation Load

0.01% + 2mV

Çıkış Gerilimi

30VDC

Fabrika Paket Adedi

1

Current Regulation Line

0.2% + 3mA

Current Regulation Load

0.2% + 3mA

Display Type

LCD

Output Voltagechannel1

0 VDC to 30 VDC

Nem Hassasiyeti (MSL)

Not Applicable

Yükseklik

6 in

RoHS

Details

Overload Protection

Yes

Ürün Tipi

Bench Top Power Supplies

Genişlik

4.25 in

Nominal Input Voltage

120 VAC, 240 VAC

Voltage Regulation Line

0.01% + 3mV

Besleme Gerilimi

115V~230VAC

Cable Types

North American Power Cord Included

Boyut / Ölçü

9.400Lx6.000W x 4.250 H 238.76mmx152.40mmx107.95mm

Output Current

0-1 A

Uzunluk

9.4 in

Number Of Outputs

1

Fabrika Tedarik Süresi

6 Weeks

Üretici Parça No

382200

Input Frequency

50 Hz, 60 Hz

Tip

Bench (AC to DC)

Input Voltage

115 VAC, 230 VAC

Yayın Yılı

2008

Nominal Output Voltage

0-30 VDC

Ripple

0.5mV rms
