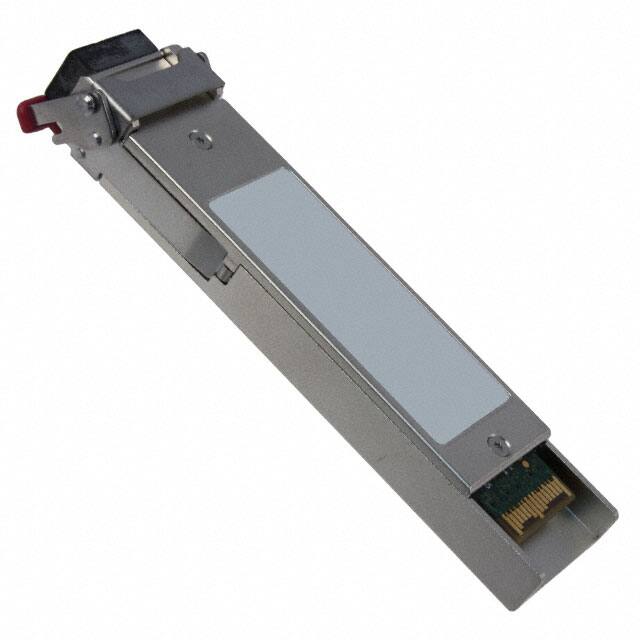

FTLX1611M3

Teknik Özellikler

Fiber Optic Device Type

TRANSCEIVER

Parça Durumu

Obsolete

RoHS Durumu

RoHS Compliant

Yayın Yılı

2006

Operating Supply Voltage

5.25V

Body Length Or Diameter

77.95mm

REACH Uyumluluk Kodu

unknown

Operating Temperature Min

-5°C

Body Height

13.3mm

Montaj

Panel, Pluggable

Connector Type

LC Duplex

Pin Sayısı

30

Data Rate

11.1Gbps

Besleme Gerilimi

5V

Additional Feature

IT ALSO OPERATES FROM 1270NM TO 1600NM WAVELENGTH

Optical Power Outputnom

1.5848mW

Fiber Type

9/125, SMF

Rise Time

38ps

Operating Temperature Max

70°C

Operating Wavelengthnom

1548 nm

Body Breadth

22.15 mm

Applications

Ethernet

Communication Standard

GBE, ITU-T, OC-192, SDH, SONET, STM-S-64.2B; STM-S-64.3B

Montaj Tipi

Pluggable, XFP

Nem Hassasiyeti (MSL)

1 (Unlimited)

Besleme Gerilimi

4.75V~5.25V
