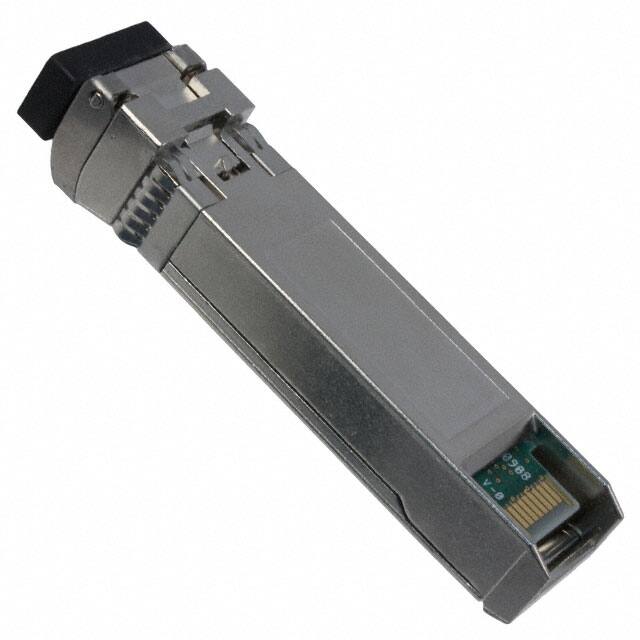

FTLF8528P2BNV

Teknik Özellikler

Montaj Tipi

Pluggable, SFP+

Besleme Gerilimi

3V~3.6V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Communication Standard

GBE

Kurşunsuz Kodu

yes

Operating Wavelengthnom

850 nm

Operating Temperature Max

85°C

Return Lossmin

12 dB

Emitterdetector Type

LASER DIODE

Applications

Ethernet

Body Breadth

13.7 mm

Besleme Gerilimi

3.3V

Additional Feature

SFF-8431, SFF-8432, IT ALSO OPERATES FORM 770NM TO 860NM WAVELENGTH

Montaj

Panel, Pluggable

Connector Type

LC Duplex

Pin Sayısı

20

Data Rate

8.5Gbps

Fiber Type

50/125, MMF

Optical Power Outputnom

0.281mW

Yayın Yılı

2007

RoHS Durumu

RoHS Compliant

Fiber Optic Device Type

TRANSCEIVER

Parça Durumu

Obsolete

Operating Temperature Min

-5°C

Body Height

8.5mm

Operating Supply Voltage

3.6V

Body Length Or Diameter

56.5mm
