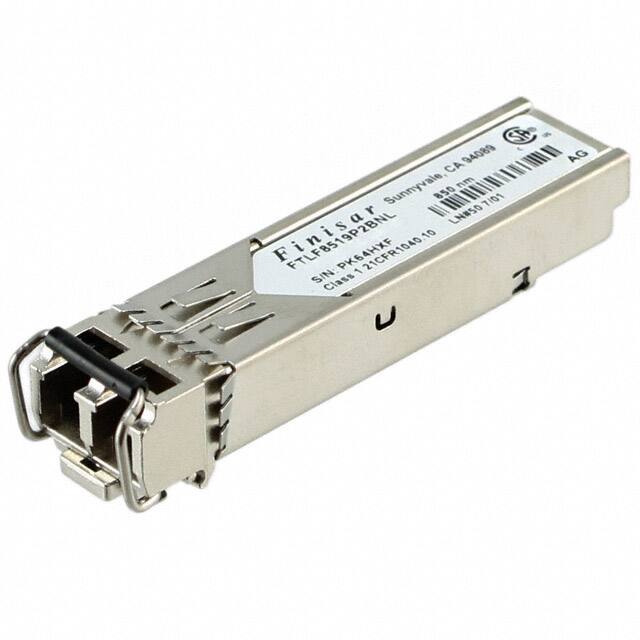

FTLF8519P2BNL

Teknik Özellikler

Body Length Or Diameter

56.64mm

Body Breadth

13.72 mm

Operating Wavelengthnom

845 nm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Applications

Ethernet

Operating Supply Voltage

3.6V

Kurşunsuz

Lead Free

Fiber Optic Device Type

TRANSCEIVER

RoHS Durumu

RoHS Compliant

Body Height

12.43mm

Montaj

Panel, Pluggable

Data Rate

2.125Gbps

Yayın Yılı

2005

Parça Durumu

Obsolete

Montaj Tipi

Pluggable, SFP

Besleme Gerilimi

3V~3.6V

Emitterdetector Type

LASER

Communication Standard

GBE

Operating Temperature Max

85°C

Pin Sayısı

20

Fiber Type

50/125, 62.5/125, MMF

Return Lossmin

12 dB

Kurşunsuz Kodu

yes

Connector Type

LC Duplex

Optical Power Outputnom

0.5011mW

Besleme Gerilimi

3.3V

Additional Feature

IT ALSO OPERATES FROM 770NM TO 860NM WAVELENGTH
