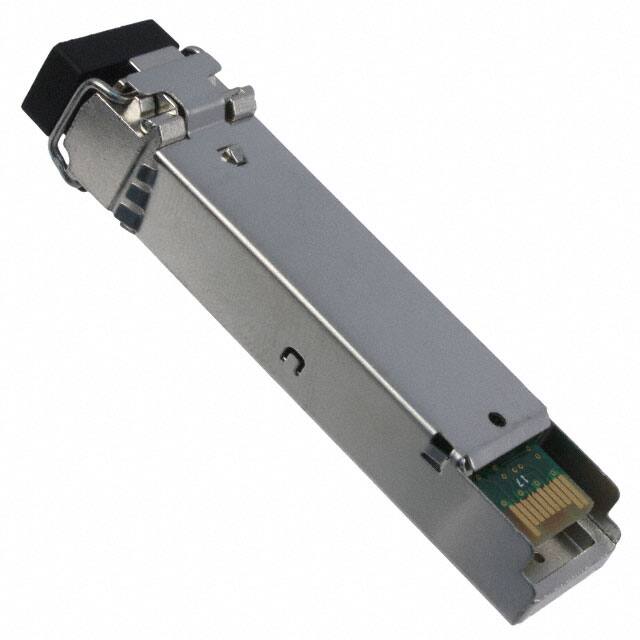

FTLF8519P2BCL

Teknik Özellikler

Montaj Tipi

Pluggable, SFP

Parça Durumu

Obsolete

Yayın Yılı

2005

REACH Uyumluluk Kodu

unknown

Communication Standard

GBE

Operating Temperature Max

70°C

Emitterdetector Type

LASER

Besleme Gerilimi

3V~3.6V

Optical Power Outputnom

0.5011mW

Connector Type

LC Duplex

Kurşunsuz Kodu

yes

Return Lossmin

12 dB

Fiber Type

50/125, 62.5/125, MMF

Pin Sayısı

20

Additional Feature

IT ALSO OPERATES FROM 770NM TO 860NM WAVELENGTH

Besleme Gerilimi

3.3V

Operating Wavelengthnom

850 nm

Body Length Or Diameter

56.64mm

Body Breadth

13.72 mm

Applications

Ethernet

Operating Supply Voltage

3.6V

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Fiber Optic Device Type

TRANSCEIVER

Data Rate

2.125Gbps

Montaj

Pluggable, Snap in

Body Height

12.43mm
