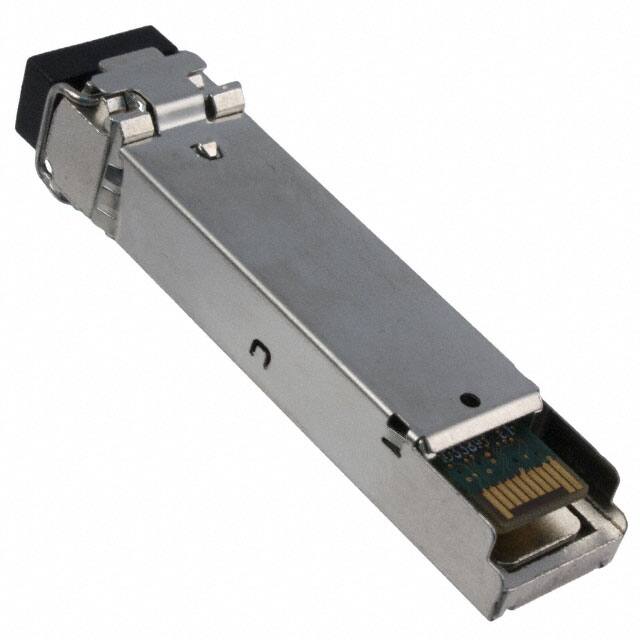

FTLF1621P2BCL

Teknik Özellikler

Montaj Tipi

Pluggable, SFP

Operating Temperature Min

-10°C

Parça Durumu

Obsolete

REACH Uyumluluk Kodu

unknown

Yayın Yılı

2007

Communication Standard

GBE, GR-253, ITU-G.957, OC-48, SDH, SONET, STM-L-16.2

Operating Temperature Max

70°C

Besleme Gerilimi

3.1V~3.5V

Emitterdetector Type

LASER, AVALANCHE PHOTODIODE

Optical Power Outputnom

1.122mW

Connector Type

LC Duplex

Return Lossmin

-41 dB

Pin Sayısı

20

Fiber Type

9/125, SMF

Additional Feature

IT ALSO OPERATES FORM 1270NM TO 1600NM, OTHER VALUE FOR SENSITIVITY:-15DBM

Besleme Gerilimi

3.3V

Operating Wavelengthnom

1540 nm

Body Length Or Diameter

56.64mm

Body Breadth

13.72 mm

Applications

Ethernet

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Fiber Optic Device Type

TRANSCEIVER

Montaj

Pluggable

Data Rate

2.67Gbps

Body Height

12.43mm
