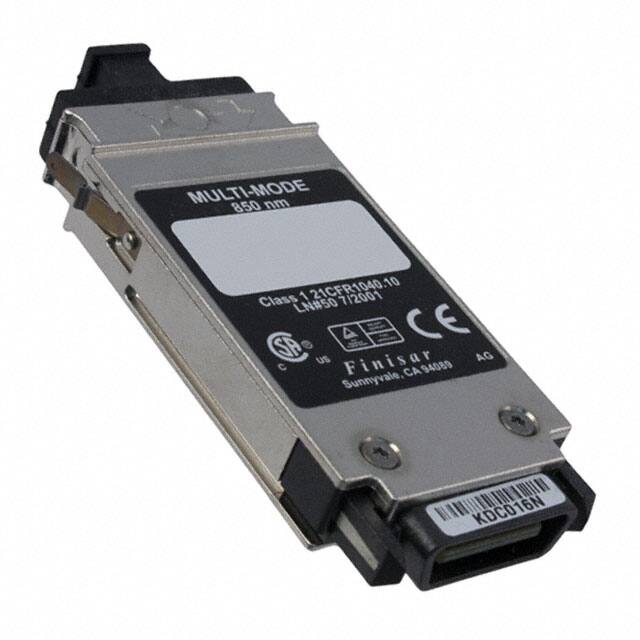

FTL-8519-3D

Teknik Özellikler

Applications

Ethernet

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Wavelengthnom

840 nm

Body Length Or Diameter

65.27mm

Body Breadth

30.4 mm

Data Rate

2.125Gbps

Body Height

11.94mm

RoHS Durumu

RoHS Compliant

Besleme Gerilimi

3.15V~5.5V

Emitterdetector Type

LASER DIODE

Communication Standard

GBE

Operating Temperature Max

85°C

Parça Durumu

Obsolete

REACH Uyumluluk Kodu

unknown

Yayın Yılı

2007

Operating Temperature Min

-10°C

Besleme Gerilimi

3.3V

Yüzey Montaj

NO

Additional Feature

IT ALSO OPERATES FROM 770NM TO 860NM

Return Lossmin

-30 dB

Kurşunsuz Kodu

yes

Pin Sayısı

20

Optical Power Outputnom

0.223mW

Mounting Feature

PANEL MOUNT

Connector Type

SC
