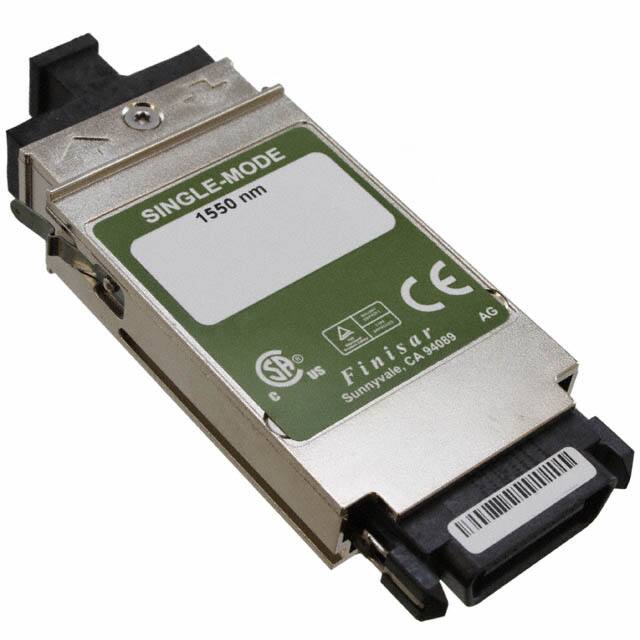

FTL-1519-3D

Teknik Özellikler

Communication Standard

GBE

Operating Temperature Max

70°C

Emitterdetector Type

LASER DIODE

Besleme Gerilimi

3.15V~5.5V

Yayın Yılı

2007

REACH Uyumluluk Kodu

unknown

Parça Durumu

Obsolete

Rise Time

260ps

Additional Feature

IT ALSO OPERATES FROM 1260NM TO 1610NM

Yüzey Montaj

NO

Besleme Gerilimi

3.3V

Mounting Feature

PANEL MOUNT

Connector Type

SC

Optical Power Outputnom

1.584mW

Fiber Type

SMF

Kurşunsuz Kodu

yes

Return Lossmin

-34 dB

Nem Hassasiyeti (MSL)

1 (Unlimited)

Applications

Ethernet

Operating Supply Voltage

5.5V

Body Length Or Diameter

65.27mm

Body Breadth

30.4 mm

Operating Wavelengthnom

1555 nm

Body Height

11.94mm

Data Rate

1.25Gbps

RoHS Durumu

RoHS Compliant
