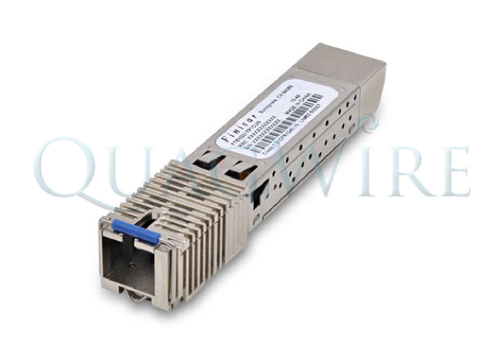

FTGL2025S1TUS

Teknik Özellikler

Body Height

9.78mm

Body Length Or Diameter

49.56mm

Number Of Receivers

1

Parça Durumu

Obsolete

Connector Type

SC

Communication Standard

GR-253, GR-326, ITU-T-G.984.2

Max Supply Current

450mA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Pluggable, SFP

Besleme Gerilimi

3.3V

Data Rate

2488.32Mbps

Besleme Gerilimi

3.3V

Kurşunsuz Kodu

yes

Operating Wavelengthnom

1490 nm

Operating Temperature Max

85°C

Montaj

Pluggable

RoHS Durumu

RoHS Compliant

Operating Temperature Min

-40°C

Optical Power Outputnom

2.113mW

Yayın Yılı

2009

Emitterdetector Type

LASER, AVALANCHE PHOTODIODE

Pin Sayısı

20
