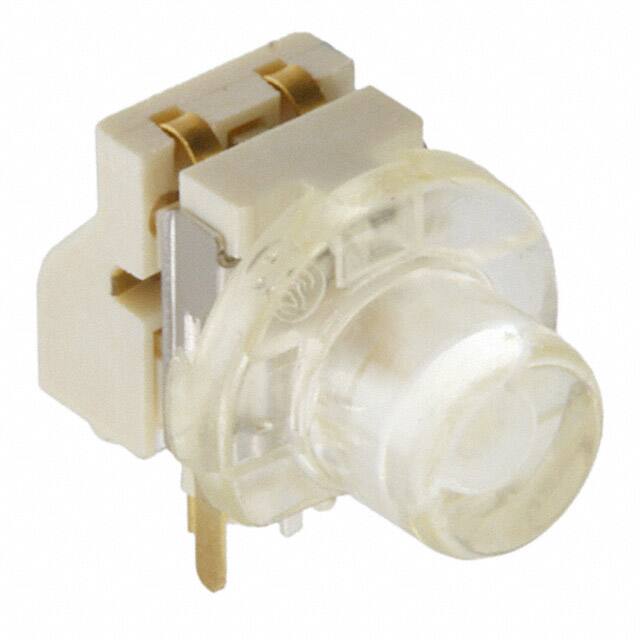

TL1270F160GYQAT

Teknik Özellikler

Kurşunsuz

Lead Free

Terminal Stili

PC Pin

Insulation Resistance

100000000Ohm

Illumination Type Color

LED, Green/Yellow

Dielectric Withstanding Voltage

250VAC V

Packing Method

TAPE AND REEL

Mechanical Life

100,000 Cycles

Fabrika Tedarik Süresi

11 Weeks

Çalışma Sıcaklığı

-40°C~85°C

Number Of Switches

1

Outline

4.50mm x 4.95mm

Electricallife

100000 Cycle(s)

Parça Durumu

Active

Voltage Rated Dc

12V

Actuator Orientation

Side Actuated

Illumination Type

Illuminated, LED

Reach Svhc

No SVHC

Body Height

6.2mm

Circuit

SPST-NO

Terminal

PC Pin

Pcb Hole Count

7

Body Length Or Diameter

4.95mm

Akım Değeri

50mA

RoHS Durumu

ROHS3 Compliant

JESD-609 Kodu

e4

Contact Current Rating

50mA

Contact Plating

Silver

Contact Rating Voltage

0.05A @ 12VDC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Illumination Color

Green, Yellow

Operating Force

160gf

Throw Configuration

SPST

Contact Currentdcmax

0.05A

Actuator Type

Round Button

Contact Dc Max Rating R Load

.05A@12VDC

Illumination Voltage Nominal

2.3VDC

Illumination

Illuminated

Length Termination

0.059 inch

Seri

TL1270

Ambalaj

Tape & Reel (TR)
