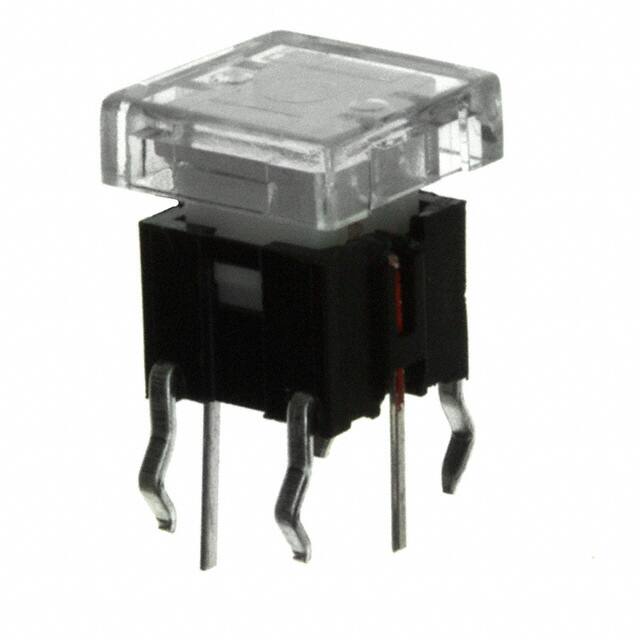

TL1240RQ1JCLR

Teknik Özellikler

Actuator Type

Square Button

Contact Currentdcmax

0.05A

Actuator Length

0.134 inch

Electricallife

100000 Cycle(s)

Throw Configuration

SPST

Outline

6.00mm x 6.00mm

Number Of Switches

1

Operating Force

160gf

HTS Kodu

8536.50.90.40

Çalışma Sıcaklığı

-20°C~70°C

Fabrika Tedarik Süresi

18 Weeks

Terminal Kaplaması

SILVER

Actuator Height Off Pcb Vertical

8.20mm

Mechanical Life

100,000 Cycles

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

250VAC V

Contact Rating Voltage

0.05A @ 12VDC

Illumination Type Color

LED, Red

Insulation Resistance

100000000Ohm

JESD-609 Kodu

e4

Terminal Stili

PC Pin

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Through Hole

ECCN Kodu

EAR99

Switch Function

Off-Mom

Switch Travel

0.25mm

Body Length Or Diameter

6mm

Yayın Yılı

2006

Body Breadth

6 mm

Contact Resistance

0.1mOhm

End Contact Plating

SILVER

Pcb Hole Count

6

Actuator Material

Polybutylene Terephthalate (PBT)

Terminal

PC Pin

Circuit

SPST-NO

Body Height

4.8mm

Illumination Type

Illuminated, LED

Montaj

Through Hole

Switch Type

KEYPAD SWITCH

Ambalaj

Bulk
