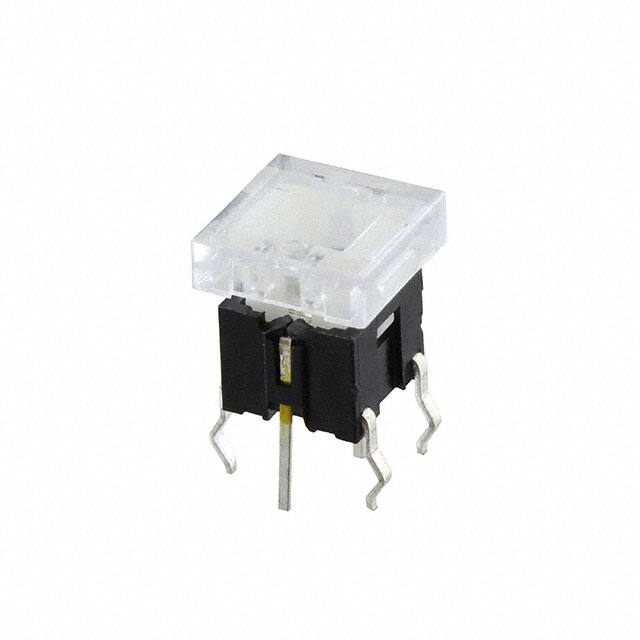

TL1240BQ1JCLR

Teknik Özellikler

Switch Function

Off-Mom

Switch Travel

0.25mm

Yayın Yılı

2008

Montaj Tipi

Through Hole

RoHS Durumu

ROHS3 Compliant

Akım Değeri

50mA

ECCN Kodu

EAR99

Contact Resistance

0.1mOhm

Actuator Material

Polybutylene Terephthalate (PBT)

Pcb Hole Count

6

Circuit

SPST-NO

Terminal

PC Pin

Body Height

3.5052mm

Switch Type

PUSHBUTTON SWITCH

Montaj

Through Hole

Illumination Type

Illuminated, LED

Actuator Orientation

Top Actuated

Seri

TL1240

Length Termination

0.138 inch

Ambalaj

Bulk

Illumination

Illuminated

Parça Durumu

Active

Voltage Rated Dc

12V

Illumination Voltage Nominal

4.2VDC

Contact Dc Max Rating R Load

0.05A@12VDC

Contact Currentdcmax

0.05A

Actuator Type

Square Button

Electricallife

100000 Cycle(s)

Throw Configuration

SPST

Actuator Length

0.185 inch

Operating Force

160gf

Outline

6.00mm x 6.00mm

Fabrika Tedarik Süresi

14 Weeks

Illumination Color

Blue

Çalışma Sıcaklığı

-20°C~70°C

Mechanical Life

100,000 Cycles

Actuator Height Off Pcb Vertical

8.20mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Illumination Type Color

LED, Blue

Dielectric Withstanding Voltage

250VAC V
