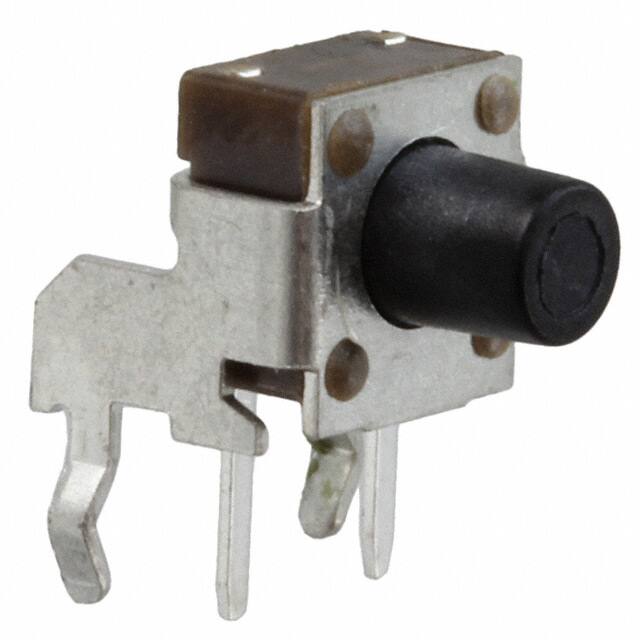

TL1105RF160Q94VO

Teknik Özellikler

Montaj Tipi

Through Hole, Right Angle

Electricallife

100000 Cycle(s)

Montaj

Through Hole

Switch Function

Off-Mom

Fabrika Tedarik Süresi

11 Weeks

Pcb Hole Count

4

Length Termination

0.138 inch

Outline

7.10mm x 6.55mm

Insulation Resistance

100000000Ohm

Body Length Or Diameter

7.112mm

Body Height

6.477mm

Contact Rating Voltage

0.05A @ 12VDC

Actuator Length Right Angle

6.15mm

ECCN Kodu

EAR99

Switch Travel

0.25mm

Terminal

PC Pin

Voltage Rated Dc

12V

Center Contact Plating

SILVER

Illumination

Non-Illuminated

Actuator Material

Polyphenylene Sulfide (PPS)

Operating Force

160gf

Throw Configuration

SPST

Ambalaj

Bulk

Dielectric Withstanding Voltage

250VAC V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Actuator Type

Standard

Yayın Yılı

2008

Parça Durumu

Active

Seri

TL1105

Çalışma Sıcaklığı

-20°C~70°C

Circuit

SPST-NO

Contact Dc Max Rating R Load

0.05A@12VDC

Switch Type

KEYPAD SWITCH

End Contact Plating

SILVER

Kurşunsuz

Lead Free

RoHS Durumu

ROHS3 Compliant

Contact Resistance

0.05mOhm

Terminal Stili

PC Pin

Akım Değeri

50mA

Özellikler

Black Actuator
