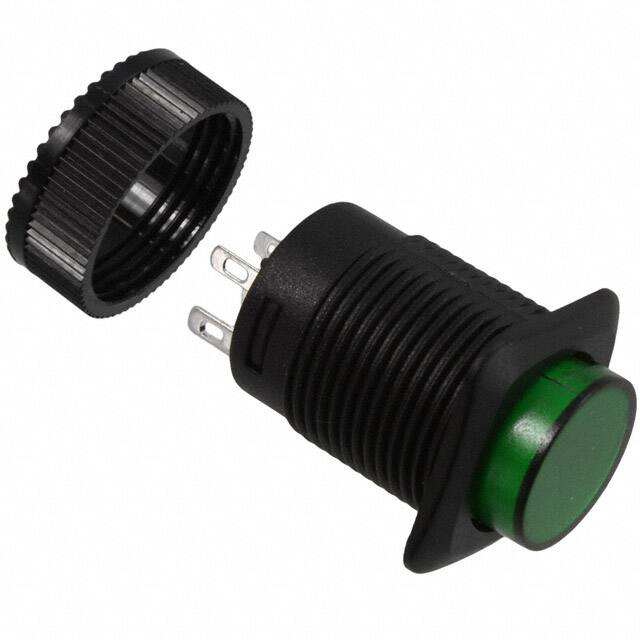

RP3508ABLKGRNGRNNS

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Dc Max Rating R Load

1.5A@250VDC

Panel Cutout Dimensions

Circular - 16.00mm Dia

Current Rating Amps

3A AC

Color Actuatorcap

Green

Çalışma Sıcaklığı

0°C~65°C

Contact Currentdcmax

1.5A

Circuit

SPST-NO

Terminal

Solder

Electricallife

6,000 Cycles

Kurşunsuz

Lead Free

Reach Svhc

No SVHC

Parça Durumu

Active

Switch Function

Off-Mom

Actuator Type

Round, Button

Akım Değeri

3A

Body Length Or Diameter

18mm

Mechanical Life

20,000 Cycles

Fabrika Tedarik Süresi

10 Weeks

Montaj Tipi

Panel Mount, Front

Contact Currentacmax

3A

ECCN Kodu

EAR99

RoHS Durumu

ROHS3 Compliant

Contact Current Rating

3A

Montaj

Front, Panel

Ambalaj

Bulk

Seri

RP3508

Voltage Rated Ac

125V

Body Height

18mm

Illumination Type

LED

HTS Kodu

8536.50.90.31

Contact Ac Max Rating R Load

3A@125VAC

Terminal Stili

Solder Lug

Illumination Type Color

LED, Green

Throw Configuration

SPST

Voltage Rated Dc

250V

Illumination Voltage Nominal

2.2VDC

Tip

Standard, Illuminated

Yayın Yılı

2008
