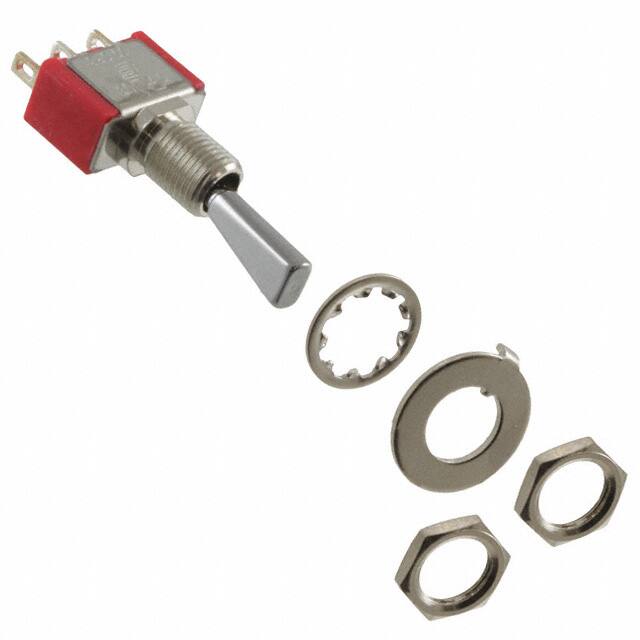

100SP3T6B11M1QEH

Teknik Özellikler

Actuator Material

Brass, Chrome Plated

Circuit

SPDT

RoHS Durumu

ROHS3 Compliant

Housing Material

STAINLESS STEEL

Actuator Length

12.30mm

Terminal

Solder

Akım Değeri

5A

Terminal Stili

Solder Lug

Body Height

8.89mm

Voltage Rated Ac

120V

End Contact Material

COPPER ALLOY

Actuator Type

Flat Anti-Rotation

Electricallife

40,000 Cycles

Contact Currentdcmax

5A

Current Rating Amps

5A AC/DC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Panel

Contact Plating

Silver

Voltage Rated Dc

28V

Switch Type

TOGGLE SWITCH

Contact Currentacmax

2A

Terminal Material

COPPER ALLOY

Fabrika Tedarik Süresi

10 Weeks

Contact Ac Max Rating R Load

2A@250VAC

Illumination

Non-Illuminated

Yayın Yılı

2008

Genişlik

6.86mm

Contact Voltageacmax

250V

Center Contact Material

COPPER ALLOY

Switch Function

On-Off-On

Özellikler

Epoxy Sealed Terminals

Kurşunsuz

Lead Free

Parça Durumu

Active

Bushing Thread

1/4-40

Montaj Tipi

Panel Mount

Çalışma Sıcaklığı

-30°C~85°C

Body Breadth

6.858 mm

Insulation Materials

DIALLYL PHTHALATE

Contact Resistance

0.01mOhm

Illumination Type

Illuminated, Non-Illuminated
