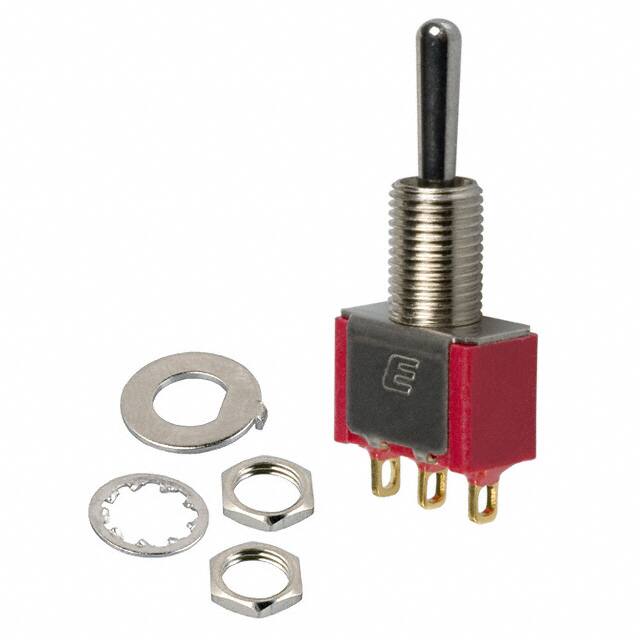

100SP3T1B1M1REH

Teknik Özellikler

Contact Current Rating

5A

Switch Type

TOGGLE SWITCH

Montaj

Panel

Contact Plating

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Rated Dc

20V

JESD-609 Kodu

e4

Fabrika Tedarik Süresi

10 Weeks

Yayın Yılı

2006

Illumination

Non-Illuminated

Actuator Length

10.41mm

Terminal Stili

Solder Lug

Terminal

Solder

Akım Değeri

400mA

Actuator Material

Brass, Chrome Plated

Contact Materials

Copper, Gold

Circuit

SPDT

RoHS Durumu

ROHS3 Compliant

Actuator Type

Standard Round

Current Rating Amps

0.4VA AC/DC

Electricallife

40,000 Cycles

Voltage Rated Ac

20V

ECCN Kodu

EAR99

Seri

100

Uzunluk

12.7mm

Illumination Type

Illuminated, Non-Illuminated

Kurşunsuz Kodu

yes

Ambalaj

Bulk

Orientation

Vertical

Panel Cutout Dimensions

Circular - 6.35mm Dia

Switch Function

On-Off-On

Özellikler

Epoxy Sealed Terminals

Kurşunsuz

Lead Free

Genişlik

6.86mm

Montaj Tipi

Panel Mount

Çalışma Sıcaklığı

-30°C~85°C

Bushing Thread

1/4-40

Parça Durumu

Active
