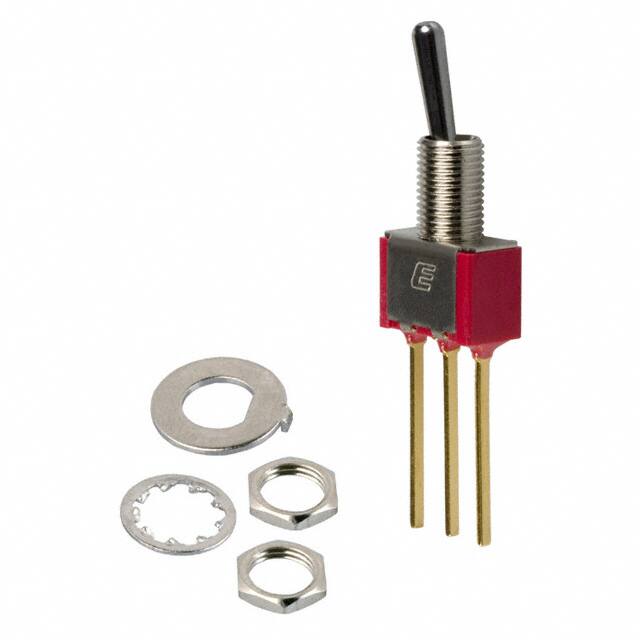

100SP1T1B1M51REH

Teknik Özellikler

Ambalaj

Bulk

Orientation

Vertical

Switch Function

On-On

Yayın Yılı

2005

Uzunluk

12.7mm

Montaj Tipi

Panel Mount

Insulation Materials

DIALLYL PHTHALATE

Genişlik

6.86mm

Contact Plating

Gold

Bushing Thread

1/4-40

Current Rating Amps

0.4VA AC/DC

Kurşunsuz Kodu

yes

Montaj

Panel

Terminal Material

COPPER ALLOY

Illumination

Non-Illuminated

Contact Ac Max Power Rating R Load

0.4VA@20VAC

Center Contact Material

COPPER ALLOY

Terminal

Wire Wrap

Actuator Length

10.41mm

Akım Değeri

400mA

Body Height

10.795mm

Circuit

SPDT

Body Breadth

6.858 mm

RoHS Durumu

ROHS3 Compliant

Voltage Rated Ac

20V

Illumination Type

Illuminated, Non-Illuminated

Actuator Material

Brass, Chrome Plated

Contact Resistance

0.01mOhm

Housing Material

STAINLESS STEEL

Panel Cutout Dimensions

Circular - 6.35mm Dia

Electricallife

40,000 Cycles

Switch Type

TOGGLE SWITCH

Voltage Rated Dc

20V

Actuator Type

Standard Round

Seri

100

Çalışma Sıcaklığı

-30°C~85°C

Dielectric Withstanding Voltage

1400VAC V

Parça Durumu

Active

Kurşunsuz

Lead Free

ECCN Kodu

EAR99
