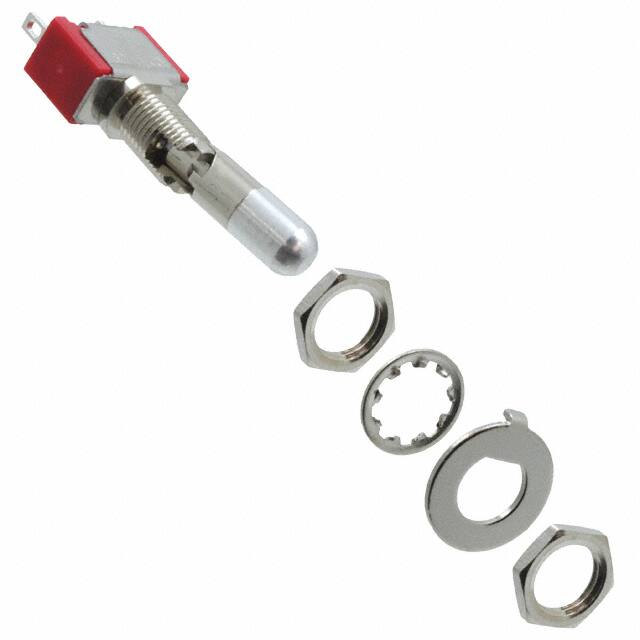

100SP1K1B25M1QEH

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Stili

Solder Lug

Contact Ac Max Rating R Load

5A@120VAC

Çalışma Sıcaklığı

-30°C~85°C

Seri

100

Parça Durumu

Active

ECCN Kodu

EAR99

Özellikler

Epoxy Sealed Terminals

Fabrika Tedarik Süresi

10 Weeks

Switch Type

TOGGLE SWITCH

Voltage Rated Dc

28V

Actuator Type

Locking Lever

Contact Current Rating

5A

Actuator Material

Brass, Chrome Plated

Panel Cutout Dimensions

Circular - 6.35mm Dia

Electricallife

40,000 Cycles

Actuator Length

14.40mm

Body Height

8.89mm

Akım Değeri

5A

RoHS Durumu

ROHS3 Compliant

Circuit

SPDT

Voltage Rated Ac

120V

JESD-609 Kodu

e4

Illumination

Non-Illuminated

Terminal

Solder

Contact Plating

Silver

Current Rating Amps

5A AC/DC

Bushing Thread

1/4-40

Contact Currentdcmax

5A

Contact Currentacmax

5A

Montaj

Panel

Kurşunsuz Kodu

yes

HTS Kodu

8536.50.90.65

Ambalaj

Bulk

Switch Function

On-On

Yayın Yılı

2008

Montaj Tipi

Panel Mount
