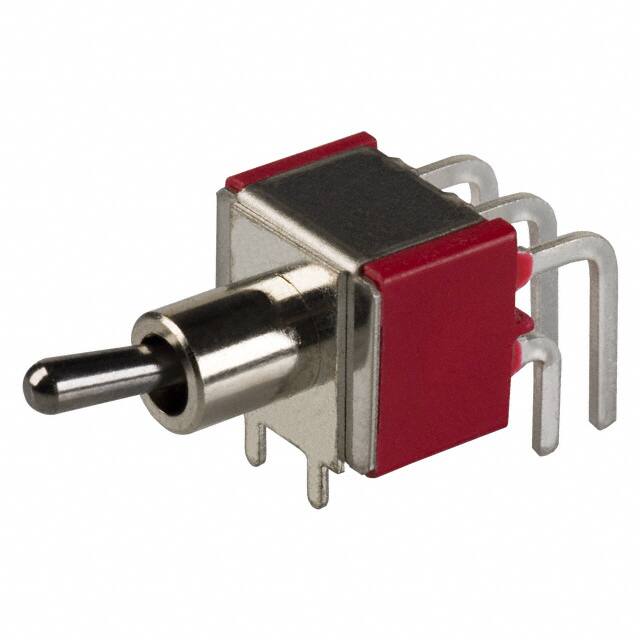

100DP1T2B4M6QE

Teknik Özellikler

Ambalaj

Bulk

Kurşunsuz

Lead Free

Contact Ac Max Rating R Load

5A@120VAC

Contact Plating

Silver

Contact Current Rating

5A

Çalışma Sıcaklığı

-30°C~85°C

Bushing Thread

Unthreaded

Switch Type

TOGGLE SWITCH

Current Rating Amps

5A AC/DC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Epoxy Sealed Terminals

Seri

100

Switch Function

On-On

Electricallife

40,000 Cycles

Montaj

Through Hole

Circuit

DPDT

Voltage Rated Dc

28V

ECCN Kodu

EAR99

Body Breadth

12.7 mm

Terminal Material

COPPER ALLOY

Voltage Rated Ac

120V

Contact Currentdcmax

5A

JESD-609 Kodu

e4

Contact Materials

Copper, Silver

Dielectric Withstanding Voltage

1400VAC V

Actuator Type

Standard Round

RoHS Durumu

ROHS3 Compliant

Body Height

11.43mm

Yayın Yılı

2006

Orientation

Right Angle

Illumination Type

Illuminated, Non-Illuminated

Illumination

Non-Illuminated

Terminal Stili

PC Pin

Parça Durumu

Active

Actuator Material

Brass, Chrome Plated

Pcb Hole Count

8

Actuator Length

6.46mm

Bushing Length

0.29 inch

HTS Kodu

8536.50.90.65

Sealing

EPOXY TERMINAL SEALED
