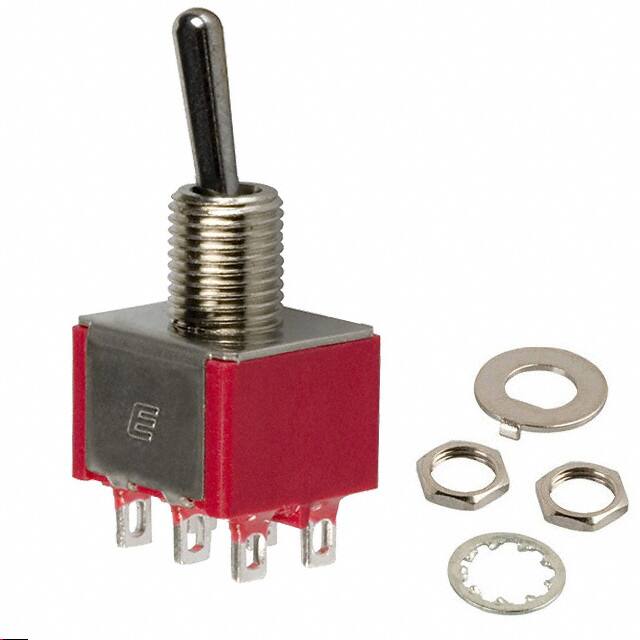

100DP1T1B1M1QEH

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Switch Type

TOGGLE SWITCH

Actuator Length

10.41mm

Bushing Length

0.35 inch

Current Rating Amps

5A AC/DC

Body Length Or Diameter

12.7mm

Seri

100

Sealing

EPOXY TERMINAL SEALED

Özellikler

Epoxy Sealed Terminals

Contact Currentacmax

5A

Max Voltage Rating Dc

28V

Length Termination

0.096 inch

Montaj

Panel

Circuit

DPDT

Montaj Tipi

Panel Mount

Fabrika Tedarik Süresi

7 Weeks

ECCN Kodu

EAR99

Voltage Rated Dc

28V

Switch Function

On-On

Akım Değeri

5A

Electricallife

40,000 Cycles

Kurşunsuz Kodu

yes

Terminal

Solder

Contact Currentdcmax

5A

Voltage Rated Ac

120V

Contact Resistance

0.01mOhm

Body Breadth

11.43 mm

Contact Materials

Silver

Panel Cutout Dimensions

Circular - 6.35mm Dia

Contact Dc Max Rating R Load

5A@28VDC

Actuator Type

Standard Round

Ambalaj

Bulk

JESD-609 Kodu

e4

Kurşunsuz

Lead Free

Body Height

10.41mm

Contact Ac Max Rating R Load

5A@120VDC

Yayın Yılı

2008

RoHS Durumu

ROHS3 Compliant

Illumination

Non-Illuminated

Illumination Type

Illuminated, Non-Illuminated
