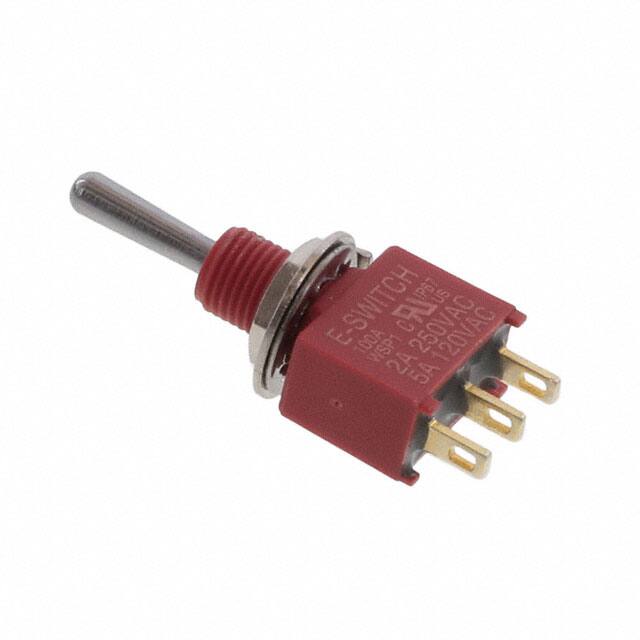

100AWSP1T1B1M1QEH

Teknik Özellikler

Yayın Yılı

2014

Panel Cutout Dimensions

Circular - 6.35mm Dia

RoHS Durumu

ROHS3 Compliant

Seri

100A

Terminal Stili

Solder Lug

Voltage Rated Dc

28V

Body Height

10.414mm

Montaj

Panel

End Contact Material

COPPER ALLOY

Ingress Protection

IP67 - Dust Tight, Waterproof

Contact Resistance

0.01mOhm

Body Breadth

6.604 mm

Çalışma Sıcaklığı

-30°C~85°C

Contact Plating

Silver

Actuator Material

Brass, Chrome Plated

Switch Function

On-On

Switch Type

TOGGLE SWITCH

Current Rating Amps

5A AC/DC

Parça Durumu

Active

Contact Currentacmax

5A

Özellikler

Epoxy Sealed Terminals

Terminal Material

COPPER ALLOY

Electricallife

30,000 Cycles

Actuator Type

Standard Round

Fabrika Tedarik Süresi

10 Weeks

Center Contact Material

COPPER ALLOY

Bushing Thread

1/4-40

Actuator Length

10.41mm

Circuit

SPDT

Contact Currentdcmax

5A

Length Termination

0.156 inch

Terminal

Solder

Bushing Length

0.346 inch

Illumination Type

Illuminated, Non-Illuminated

Akım Değeri

5A

Insulation Materials

POLYBUTYLENE TEREPHTHALATE

Voltage Rated Ac

120V

Contact Ac Max Rating R Load

5A@120VAC

Montaj Tipi

Panel Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)
