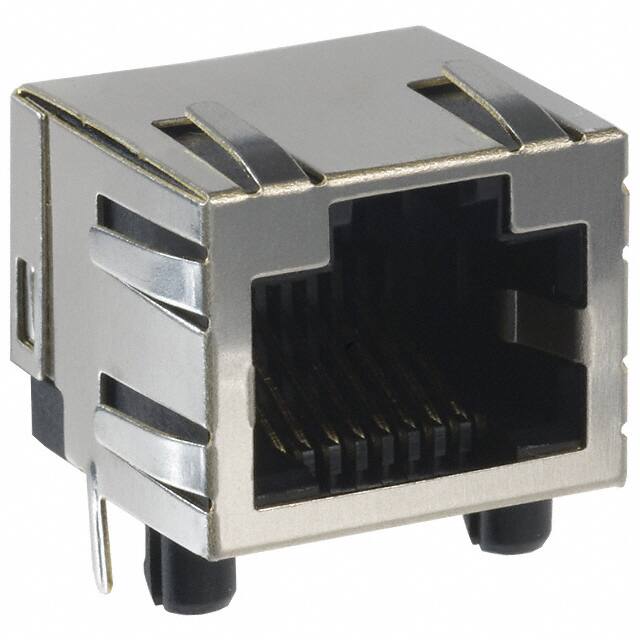

A20-108-660-010

Teknik Özellikler

RoHS Durumu

ROHS3 Compliant

Housing Material

Polybutylene Terephthalate (PBT)

Yayın Yılı

2004

Mil Conformance

NO

Shielding

Shielded

Seri

A20

Montaj

Through Hole

Connector Type

Jack

Orientation

90° Angle (Right)

Contact Style

TELCOM, MODULAR

Max Current Rating

1.5A

Reliability

COMMERCIAL

Contact Materials

Phosphor Bronze

Gender

Female

Fabrika Tedarik Süresi

14 Weeks

Terminal

Solder

Contact Finish Thickness

30.0μin 0.76μm

Contact Finish

Gold

Shell Finish

TIN

Number Of Ports

1

Din Conformance

NO

Shell Material

METAL

Additional Feature

ROHS COMPLAINT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flammability Rating

UL94 V-0

Plating Thickness

30μin

Insulation Resistance

500MOhm

Reference Standard

UL

Iec Conformance

NO

Contact Resistance

20mOhm

Empty Shell

NO

Mixed Contacts

NO

Tab Direction

Up

Kurşunsuz Kodu

yes

Özellikler

Board Lock

Parça Durumu

Active

Number Of Contacts

8

Option

GENERAL PURPOSE

Ul Flammability Code

94V-0

Number Of Positionscontacts

8p8c (RJ45, Ethernet)
