ZXMP10A18KQTC

Teknik Özellikler

Kılıf / Paket

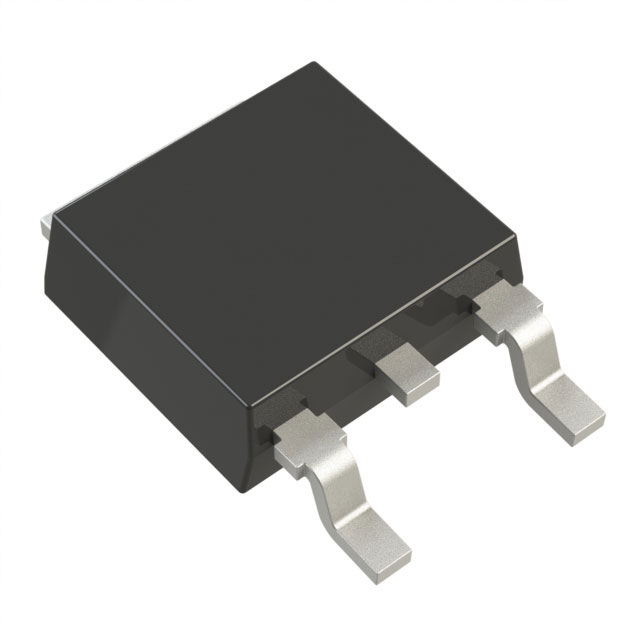

TO-252-3, DPAK (2 Leads + Tab), SC-63

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C ~ 150°C (TJ)

Tedarikçi Cihaz Paketi

TO-252 (DPAK)

Rds On Max Id Vgs

150mOhm @ 2.8A, 10V

Vgs Max

±20V

Drive Voltage Max Rds On Min Rds On

6V, 10V

Drain To Source Voltage Vdss

100 V

Power Dissipation Max

71W (Ta)

Fet Type

P-Channel

Input Capacitance Ciss Max Vds

1055 pF @ 50 V

Qualification

AEC-Q101

Gate Charge Qg Max Vgs

26.9 nC @ 10 V

Grade

Automotive

Vgsth Max Id

4V @ 250µA

Montaj Tipi

Surface Mount

Current Continuous Drain Id25

15A (Tc)

Ambalaj

Tape & Reel (TR)
