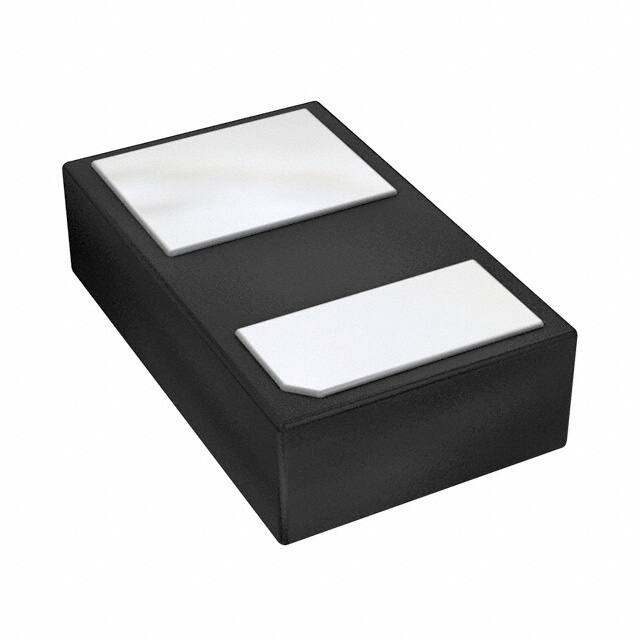

SDM2U20CSP-7

Teknik Özellikler

Kılıf / Paket

2-SMD, Flat Lead

Voltage Forward Vf Max If

470mV @ 2A

Peak Reverse Current

150μA

Jesd30 Code

R-XBCC-N2

HTS Kodu

8541.10.00.80

Capacitance Vr F

115pF @ 4V 1MHz

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Max Reverse Voltage Dc

20V

Average Rectified Current

2A

Applications

EFFICIENCY

Diode Element Material

SILICON

ECCN Kodu

EAR99

Number Of Phases

1

Terminal Formu

NO LEAD

Max Repetitive Reverse Voltage Vrrm

20V

Maks. Çalışma Sıcaklığı

150°C

Current Reverse Leakage Vr

150μA @ 20V

RoHS Durumu

ROHS3 Compliant

Forward Current

2A

Operating Temperature Junction

-55°C~150°C

Fabrika Tedarik Süresi

24 Weeks

Forward Voltage

470mV

Additional Feature

LOW LEAKAGE CURRENT

Case Connection

ANODE

Terminal Pozisyonu

BOTTOM

Ambalaj

Tape & Reel (TR)

Parça Durumu

Active

Min. Çalışma Sıcaklığı

-55°C

Max Forward Surge Current Ifsm

20A

Number Of Elements

1

Max Power Dissipation

830mW

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Montaj

Surface Mount

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Terminal Sayısı

2

Kapasitans

115pF

Element Configuration

Single

Output Currentmax

2A

Diode Type

Schottky

Montaj Tipi

Surface Mount
